Installing a Home Lift in a Fully-Finished Villa – Key Construction Considerations

Retrofitting a home lift into a villa with completed interior finishes, or even an already-occupied property, is a common requirement for upgrade-oriented households. This differs greatly from lift installation during the raw-construction phase. The main challenges for finished properties are preserving existing decorations, controlling noise and dust, shortening construction timelines, and avoiding damage to floor slabs and waterproof membranes. Many homeowners encounter problems such as cracked tiles, water seepage, scratched wall surfaces and dust spread across the whole house after construction.

ZADIM from Sweden has accumulated rich experience in domestic finished-property retrofit projects. Its factory-prefabricated integrated lift shafts minimise on-site work. Below is a complete checklist for lift retrofits in finished villas. These points should be clarified within project plans before contract signing.

Phase 1: Pre-installation site survey (most critical step)

1. On-site verification of floor slabs, waterproof membranes and underground pipework. Water pipes, under-floor heating and waterproof layers lie beneath finished floors. Qualified ZADIM engineers assess whether pit excavation is feasible. Screw-driven models with only 50 mm pit requirement are preferred. Where zero excavation is possible, full-floor-mount installation plus custom-built ramps are adopted to avoid breaking floor surfaces and subsequent water-leak risks. Blind floor-chipping by construction teams is strictly forbidden, as it may damage under-floor heating or water-supply & drainage pipelines.

2. Inspect wall, beam and column structures. No unauthorised cutting of load-bearing beams. For integrated shaft installation, guide-rail fixing points attach to secondary-structure walls wherever possible. Cutting or drilling into primary load-bearing beams is prohibited.

3. Confirm power-cable routing. For finished interiors, route cables along wall corners or inside ceiling voids to avoid unsightly exposed wiring. Check the capacity of the nearest distribution box in advance.

4. Draw-up full-house-protection plans before contract signing. Marble flooring, wooden doors, wall panelling and stair treads shall be wrapped and protected. Define a dedicated construction zone with dust-proof barriers to contain dust away from living areas such as bedrooms and living rooms. For occupied homes, temporary relocation is recommended during high-noise construction phases.

Phase 2: Equipment selection – prioritise factory-prefabricated integrated shafts for finished-property retrofits

Site-welded steel shafts should be firmly avoided for finished-home retrofits. On-site welding generates sparks and heavy dust, risking smoke-stained walls and scorched marble. Poor welding accuracy also leads to persistent creaking noises in later use.

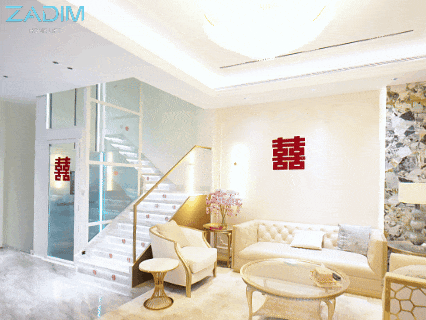

ZADIM factory-prefabricated aluminium-alloy panoramic shafts are delivered to site and assembled by bolt-fixing with almost zero on-site welding. On-site work volume is greatly reduced. Typical retrofit installation duration is 10-15 days, half the time required for site-welded solutions.

• Where civil-work constraints apply: choose screw-driven Z5000 / Z6000 / Z7000 series for ultra-shallow-pit compatibility.

• If limited floor modification is acceptable and superior ride comfort is desired: select steel-belt-traction Z8000 / Z9000 series.

Phase 3: On-site construction control points

1. Pit-excavation management: If limited pit excavation is carried out, depth must not exceed the value confirmed in the survey report. After excavation, waterproofing must be reapplied followed by a water-retention test before proceeding. Skipping waterproofing will cause water seepage to lower floors.

2. Noise management: Agree working-hour restrictions with the construction team to avoid disturbing rest periods, especially for occupied households. ZADIM modular assembly relies mainly on bolt fastening; impact-drill work is concentrated within the first few days.

3. Finished-product protection: Clearly define liability in contracts for accidental scratching or impact damage to existing walls and tiles. Clarify which repairs fall under the lift supplier’s responsibility and which are the homeowner’s obligation to prevent post-project disputes.

4. Ramp treatment: For floor-mounted lifts without excavation, fit custom-integrated anti-slip ramps to resolve height differences and eliminate trip-and-fall hazards for the elderly and children. Simple makeshift brick-stack ramps are not permitted.

5. Sealing around shaft perimeter: Seal and insulate gaps between the integrated shaft and original floor slabs / walls to block dust and noise leakage while maintaining visual tidiness.

Phase 4: Commissioning and final acceptance

1. After full-unit commissioning, test all nine safety systems item-by-item: ARD automatic rescue device, light-curtain anti-entrapment, one-touch emergency call, overload protection, self-locking braking and other functions. Retain complete acceptance documentation.

2. Site restoration inspection: Clear all construction waste. Inspect walls and floors for impact damage; re-verify waterproof-treatment zones.

3. User training: Engineers train household members including elderly occupants on normal operation and emergency procedures. Clarify future servicing workflows. Factory warranty remains valid for retrofit-project lifts, but servicing must be performed by brand-certified technicians. Unauthorised third-party maintenance invalidates original-factory warranty.

Common pitfalls for finished-property retrofits

1. Beware low-price packages hiding restoration costs. Separate quotations for lift equipment, installation, floor-excavation, waterproof-reinstatement and ramp fabrication. Many low-ball quotes only cover the lift unit itself, with extra charges for restoration work.

2. Do not modify factory shaft frames unofficially in pursuit of a larger cabin; this compromises original-factory safety structures.

3. Conventional traction lifts requiring 300-400 mm deep pits are not recommended for finished homes. Large-scale floor demolition brings extremely high modification costs.

Budget reference: Full-turnkey ZADIM screw-driven retrofit lifts: £26 400-£45 600. Full-turnkey steel-belt shallow-pit panoramic lifts: £30 000-£52 800. Additional civil-work charges apply for floor excavation, waterproof reinstatement and custom-built ramps.

Core principles for lift retrofits in finished villas: minimise on-site work, adopt factory-prefabricated products, strictly control floor-excavation and waterproofing, and clarify liability for finished-product protection. A thorough pre-installation site survey is essential to safeguard your existing interior finishes.
