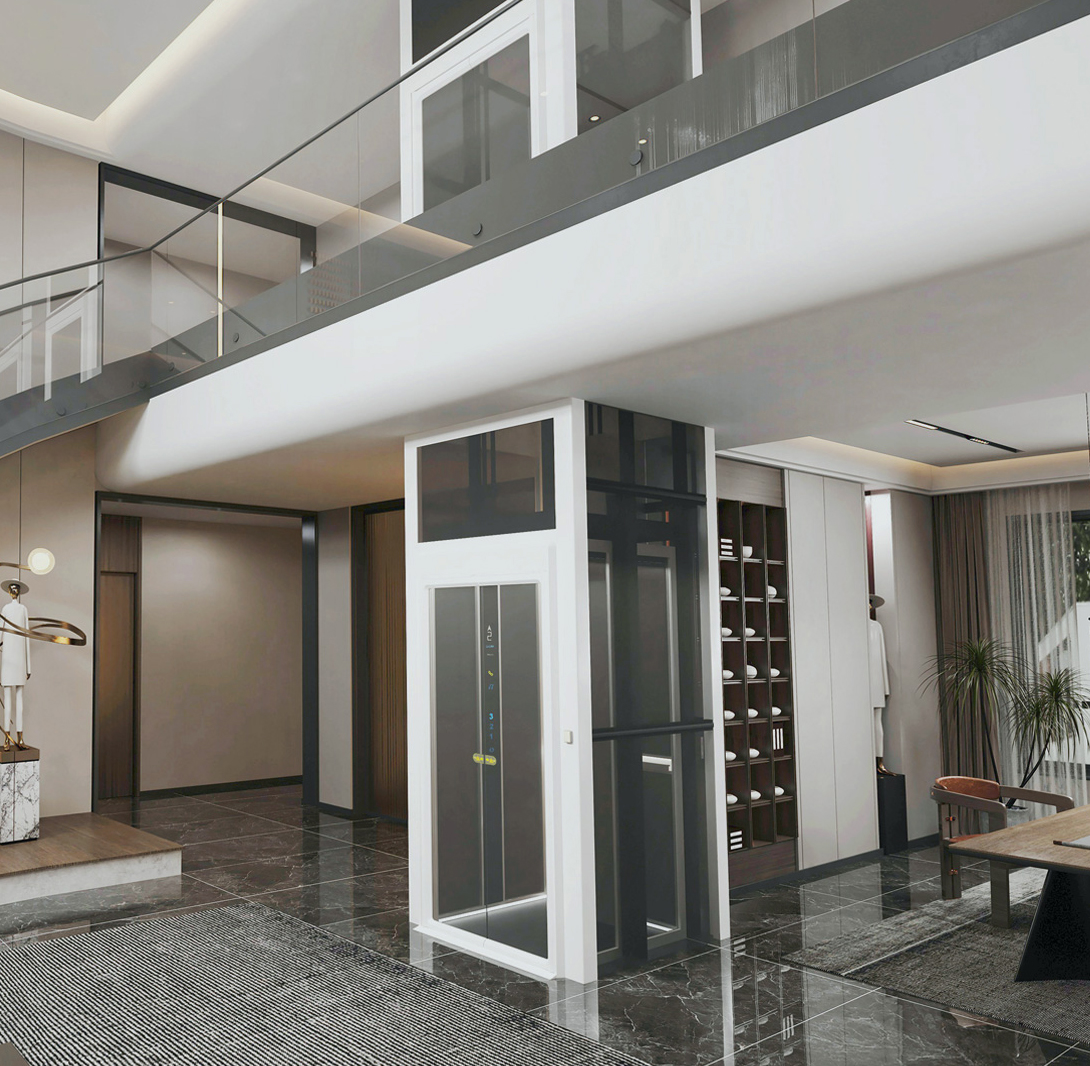

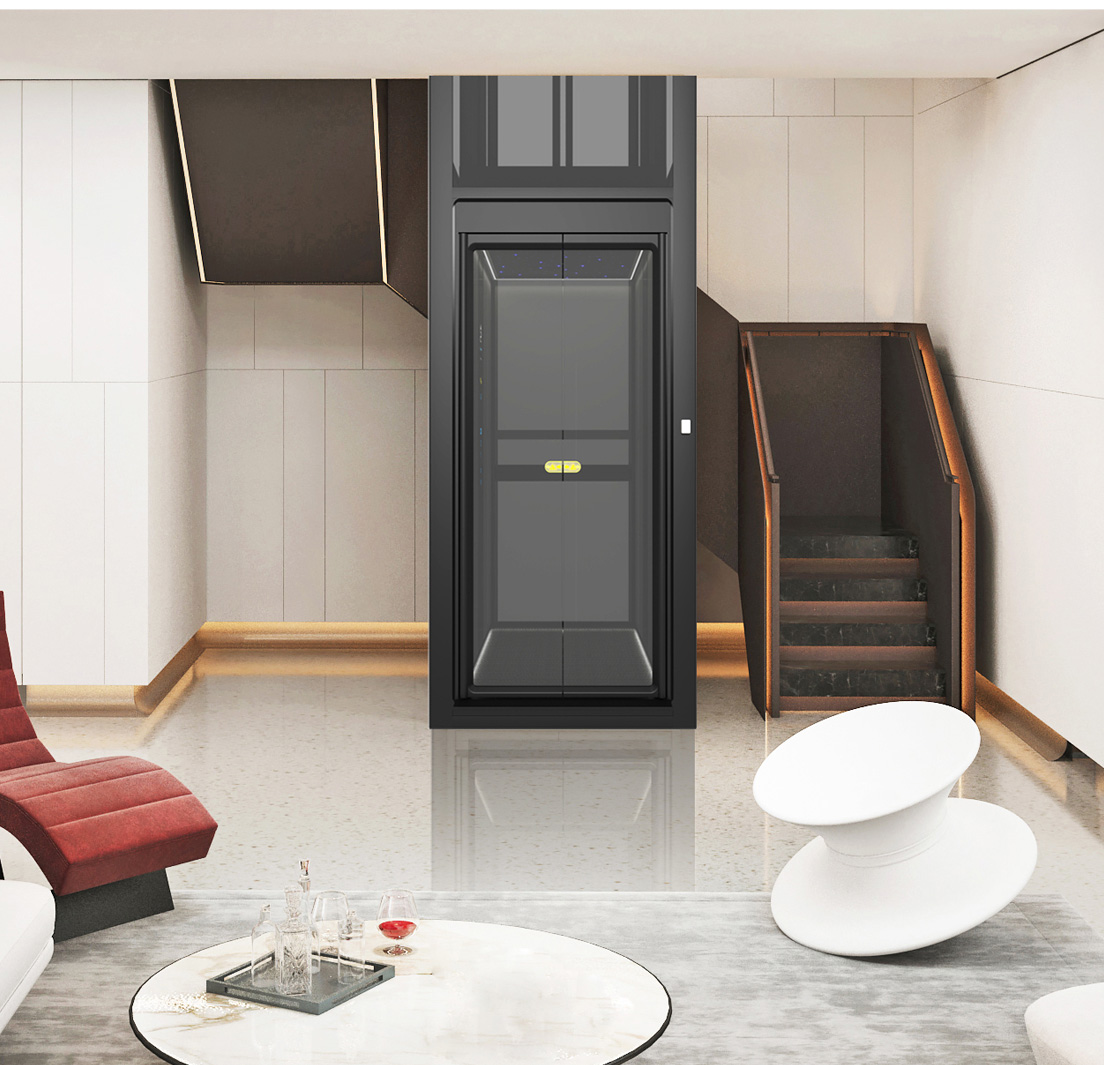

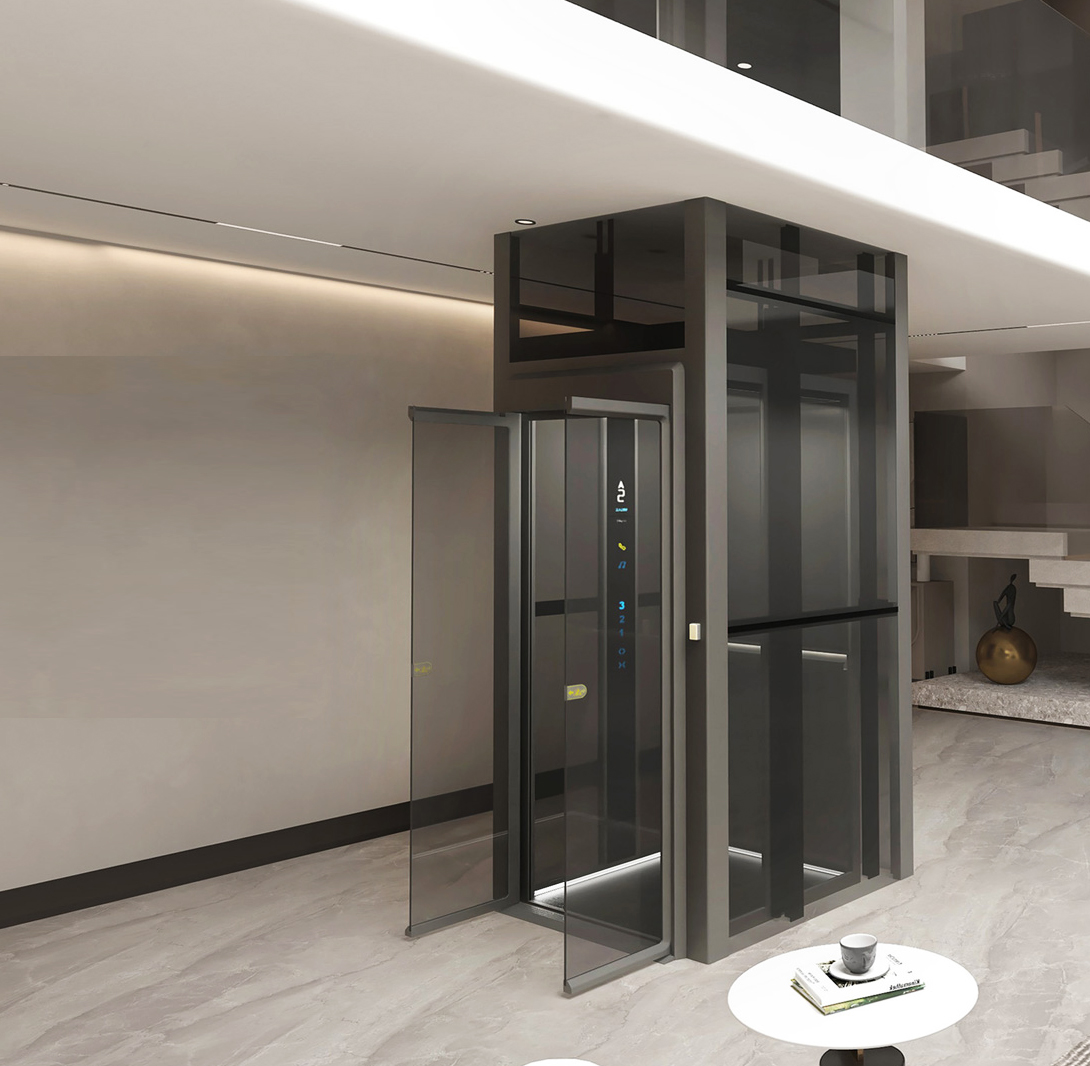

Z3000 series home lift

ZADIM Z3000 series steel belt elevator, follows the modern fashion style, has a minimalist plan, and uses Swedish craftsman culture as the heritage to create a simple and extraordinary aesthetic shuttle trip.

Model:
Z3000 series
Brand:
ZADIM

Availability:

Quantity:



Inquire Add to Basket

home lift screw-driven platform lift luxury villa lift hydraulic alternative screw lift smart home lift platform lift compact home lift electric home lift eco friendly home lift panoramic villa lift

Product Description

Advantage

Detail

Z3000 SIMPLE SERIES HOME LIFT

Zadim Z3000 enjoy series home lift aims to provide you and your family with a more cost -effective and convenient home passage method. The practical and exquisite Scandinavian -style design and the blessing of intelligent security meets different ladder needs.

Explore Z3000
Enjoy series home lift

This series of products use steel belt traction drivers, which are equipped with a compact cabin frame system to achieve the center of gravity of the car and the three hearts of the suspension center in the guide surface, thereby increasing the utilization rate and comfort of the elevator. The whole lift is simple, exquisite, and avant -garde, and it shows technology and agility between the shuttle. We also provide personalized customized options, such as the size of the shaft, the color of the shaft, and the floor style selection.
Main Feature

1.A variety of sizes to choose from, minimal reserved space 1010*1010mm
2.Exclusive customization services, shaft colors, floor materials, etc. can be customized privately
3.Driven from steel belt, with rectification and safety
4.The compact cabin frame system, running smoothly and comfortable
5.Configure intelligent systems and security components to ensure the safety of ladder for the home environment
6.Independent address correspondence board, accurate and independent control of each floor door
7.The installation is convenient and does not destroy the original civil construction structure
8.Low operation and maintenance cost

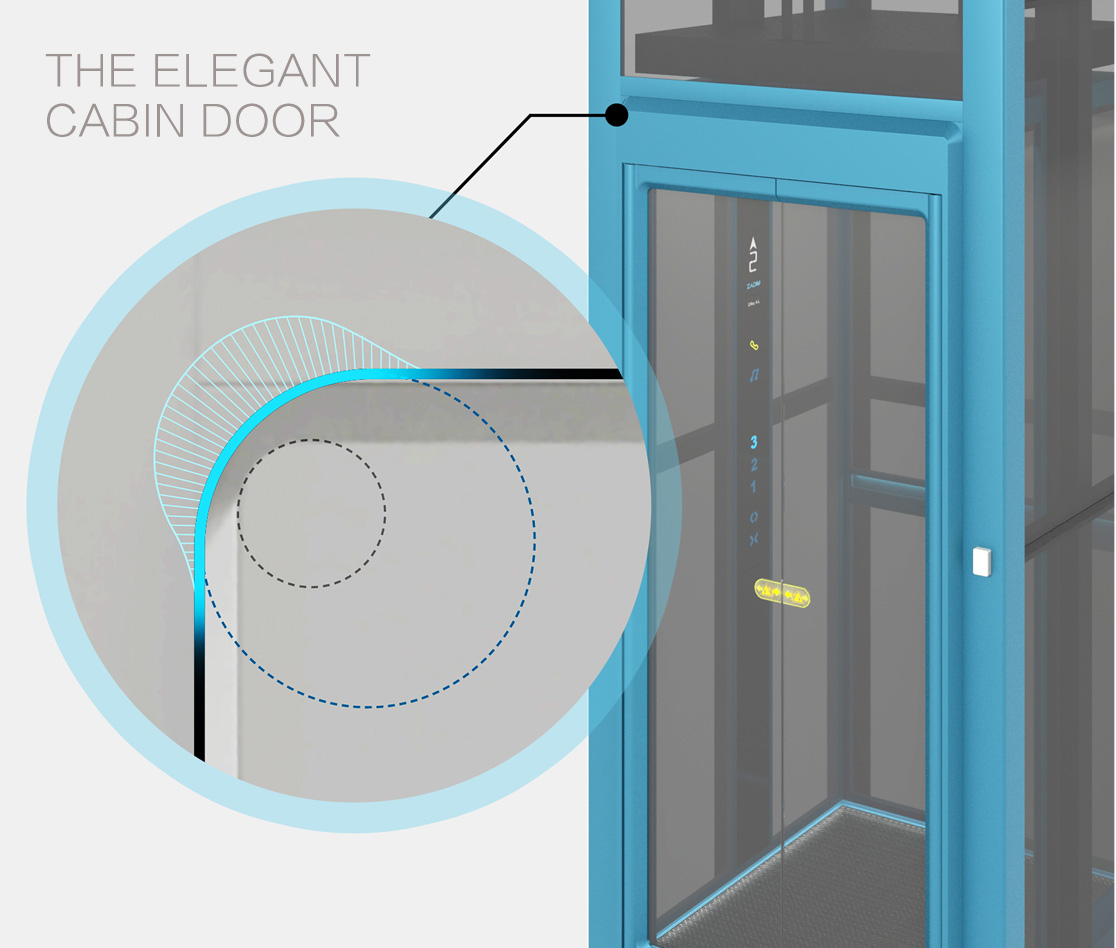

Originality to Elegantly Embrace Curves, Born from Innovation

The original ECD presents an elegant curved design, meticulously crafted with exquisite craftsmanship. The integrated casting process enhances the overall connection strength and assembly efficiency of elevators. The sleek curves gracefully blend the smooth edges with the bold lines of the elevator body, creating a subtle juxtaposition of modernist aesthetics and the Swedish precision engineering's cool sophistication. Embracing a fusion of natural and organic elements with modernism, the refined contours exude a sense of harmony

Simple and exquisite design

ZADIM Z3000 ENJOY series steel belt elevator with the strong and inclusiveness of Scandinavian -style. The new COP box unifies the function and texture, exclude the complexity of only pure, let functionalism and humanism blend with each other. Born.

Multiple Sizes For Different Space Requirements

ZADIM Z3000 series has a variety of sizes, providing products with different space requirements to meet the installation needs of different locations and different family members.

Z2000 Size Selection

Project	Rated Load KG
Project	230	320	400
Cabin Net Width CW	900	1000	1100
Cabin Net Depth CD	700	900	1000
Door Opening Net Width EW	850	850	850
Door Opening Net Height EH	2000
Standard Door Opening Type	Automatic swing door
Optional Door Opening Type	Semi-automatic door

Requirement for PIT&OH

PIT requirement

Installation pit of Z3100 series is required to be 130mm, or directly installed on the ground. Only the height of the decorative ground is used to replace the pit, reducing the cost and trouble of digging the pit.

Overhead Height

minimum lowest 2750mm
maximum height 4000mm

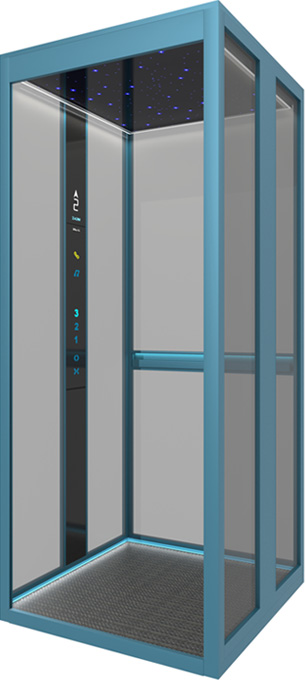

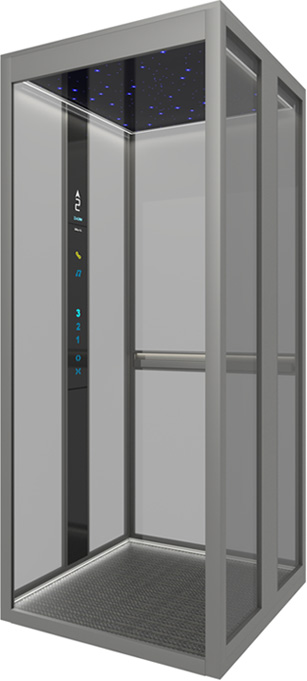

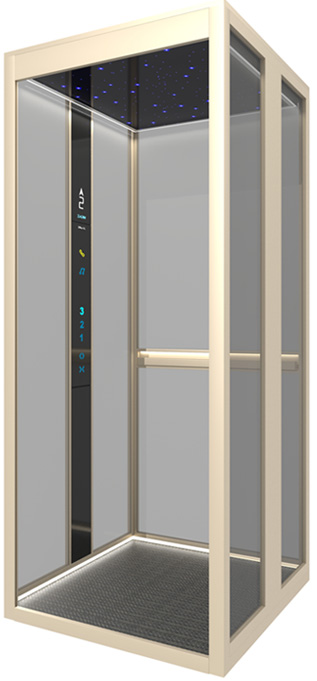

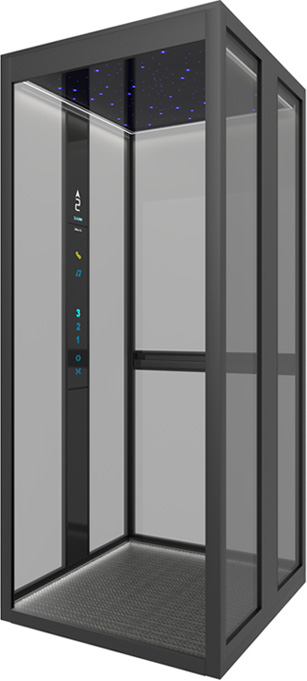

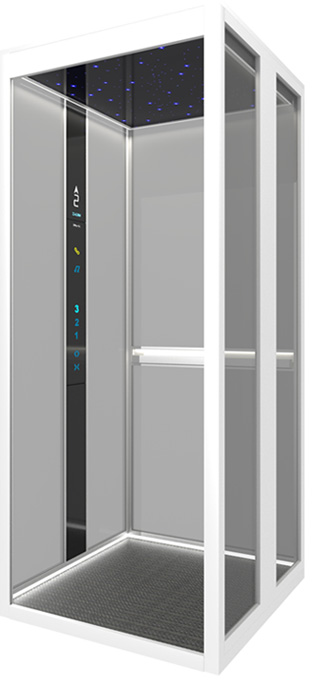

Color Customization

ZADIM Z3000 Enjoy series can customize the color of aluminum alloy hoistway and door frame, and the four colors of black, white, gray and gold show the style.
