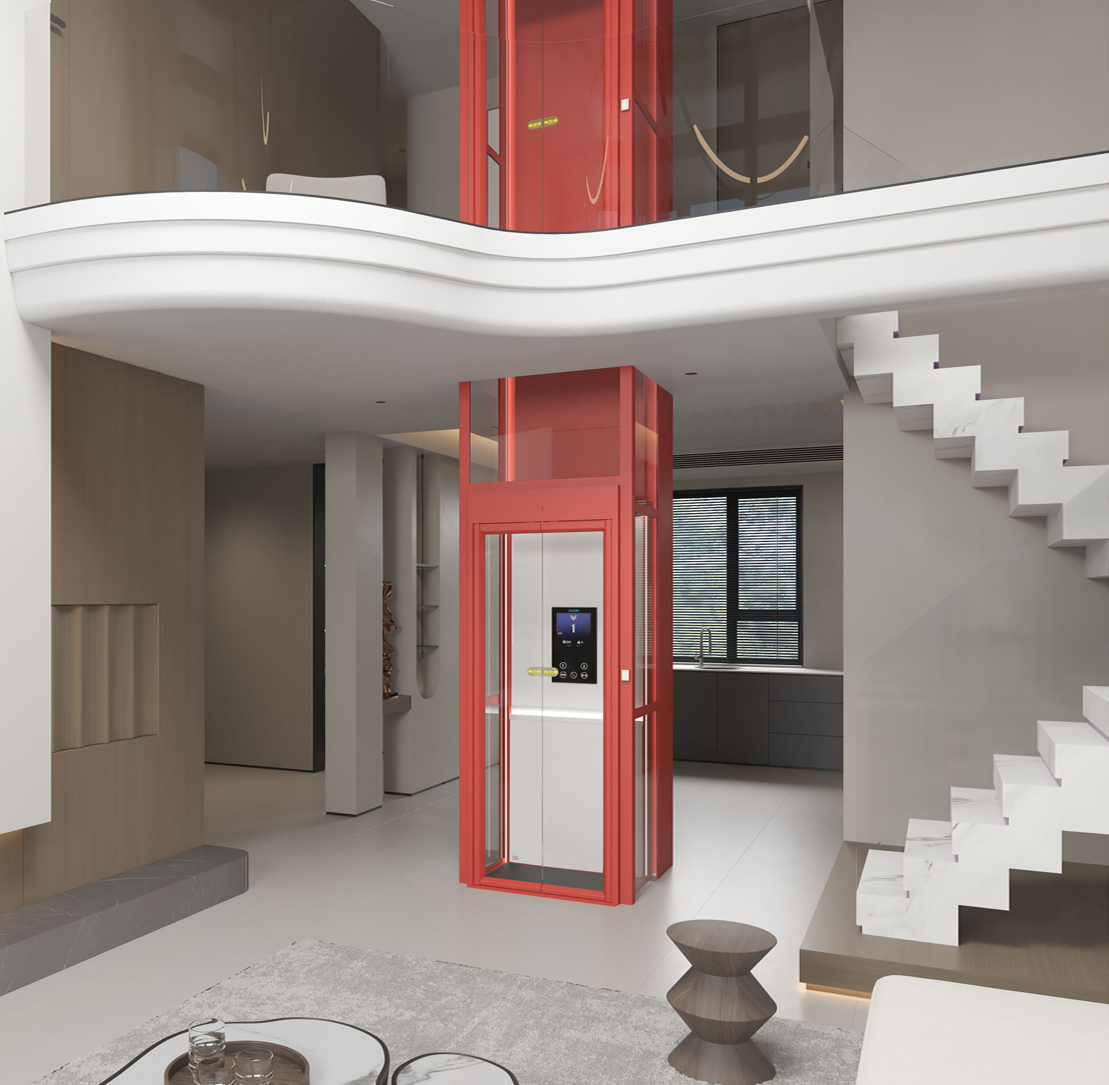

Z2000 series home lift

Z2000 SIMPLE SERIES HOME LIFT

Pure and simple, elegant and extraordinary

ZADIM Z2000 series steel belt elevator, follows the modern fashion style, has a minimalist plan, and uses Swedish craftsman culture as the heritage to create a simple and extraordinary aesthetic shuttle trip.

EXPLORE Z2000

ZADIM Z2000 SIMPLE SERIES

The product has been exhibited with exquisite skill, and the safety has been examined externally,has four safety spare parts and the nine safety systems

SIMPLE INTRODUCTION

Characteristics

• Min space 950*950mm

• Full-face glazing installation

• Three sides door open,three light curtains

• Choose automatical door or semi-automatical door

• Transparent glass shaft, transparent feeling

• A split -type cabin wall design, which is convenient for installation and maintenance

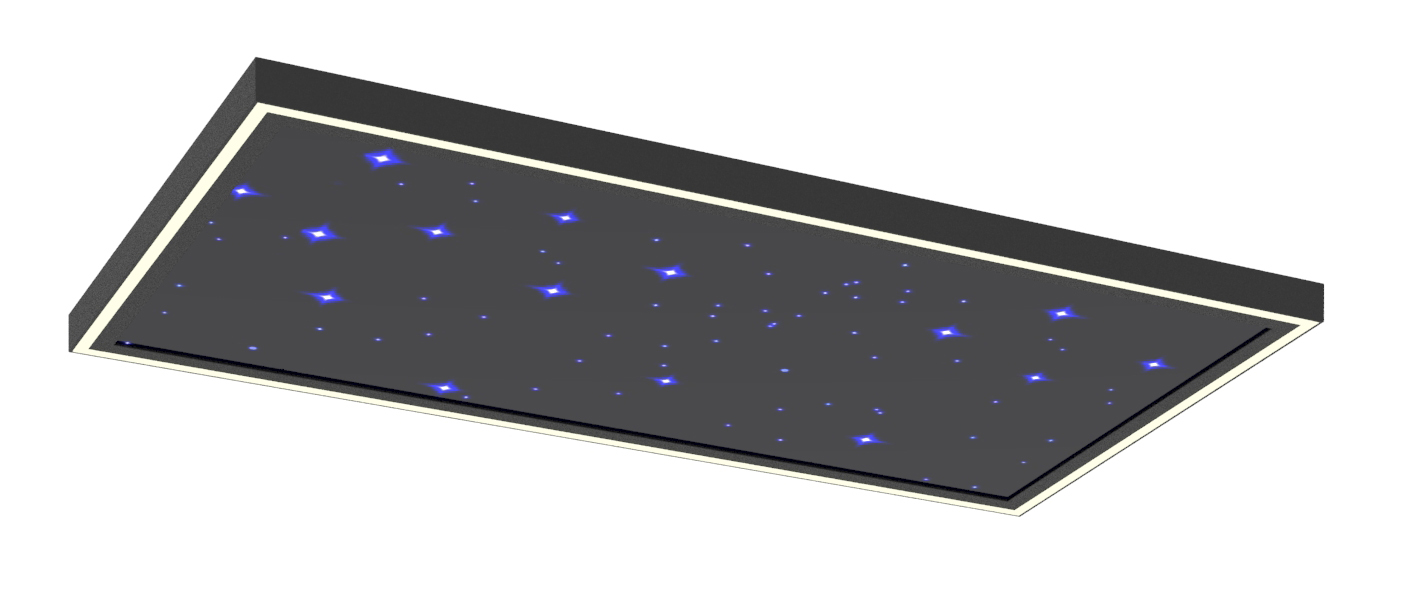

• Star ceiling as standard,Car LED light with different colors

Technology and Safety

• This series of products adopts a steel belt platform structure and has a traction balance system

• Include shaft structure,without machine room ,so small pit

• Different size,large space used,situable for different families

• High-strength aluminum shaft structure, static electricity powder heating surface treatment, metal beauty for elevator

• Four major safety spare parts,nine major safety systems run stably and ensure safety

Product Update

The front tilt angle of the door frame has been changed from 45 degrees to 60 degrees, increasing the visible area of glass door and making the overall structure more transparent.

Can choose to install large glass on the two sides of shaft, making simple appearance,making overall feel better

The updated aluminum structure greatly improves the overall assembly efficiency of the door operator, while also giving the door system better strength.

When the width of the elevator car is ≥ 1200mm, glass material can be selected for the door side shaft wall to make the elevator more transparent.

Z2000 Size Selection

Requirement for PIT&OH

PIT requirement

130-500mm, or Can be installed directly on the ground

Overhead Height

Up to 4000mm,Minimum 2400mm

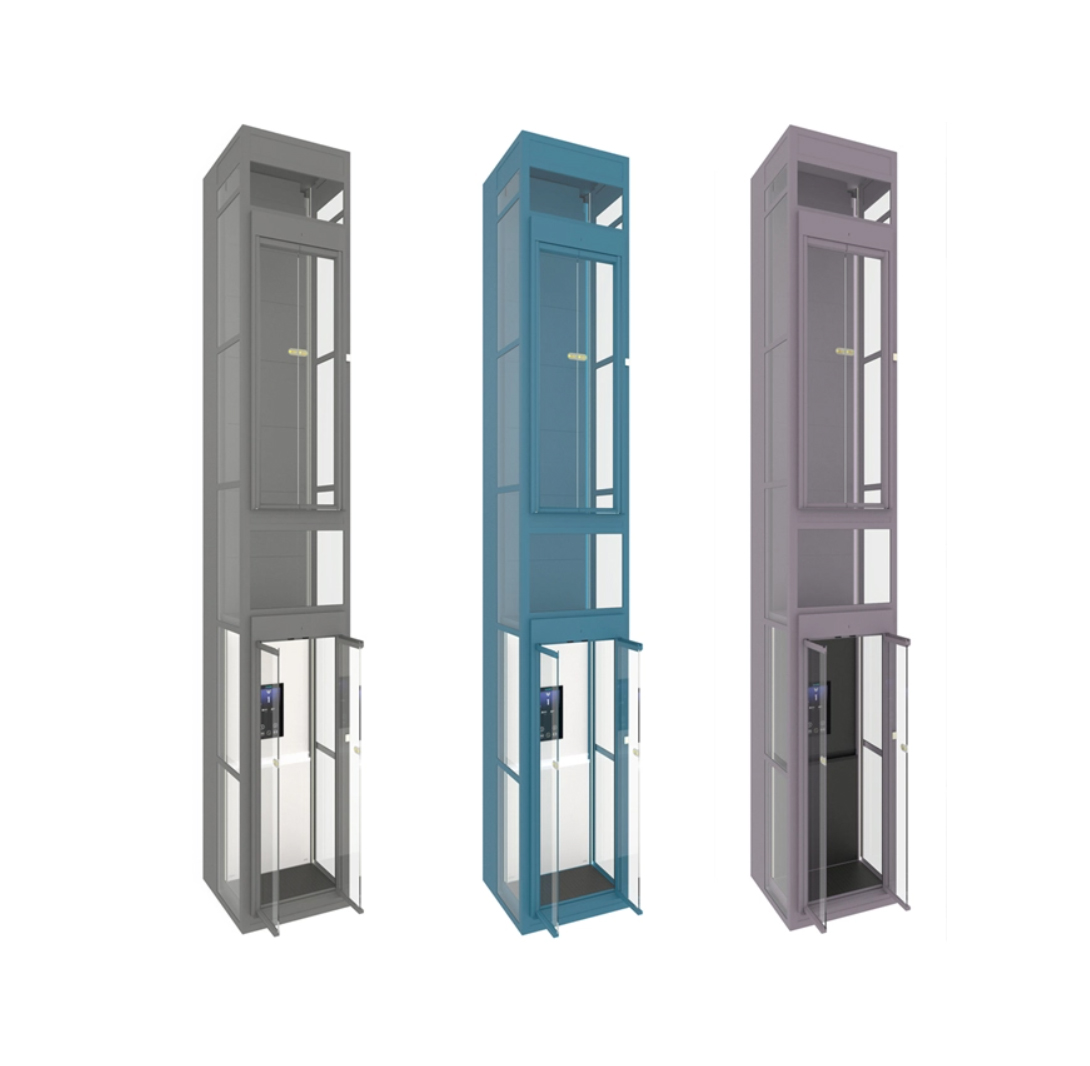

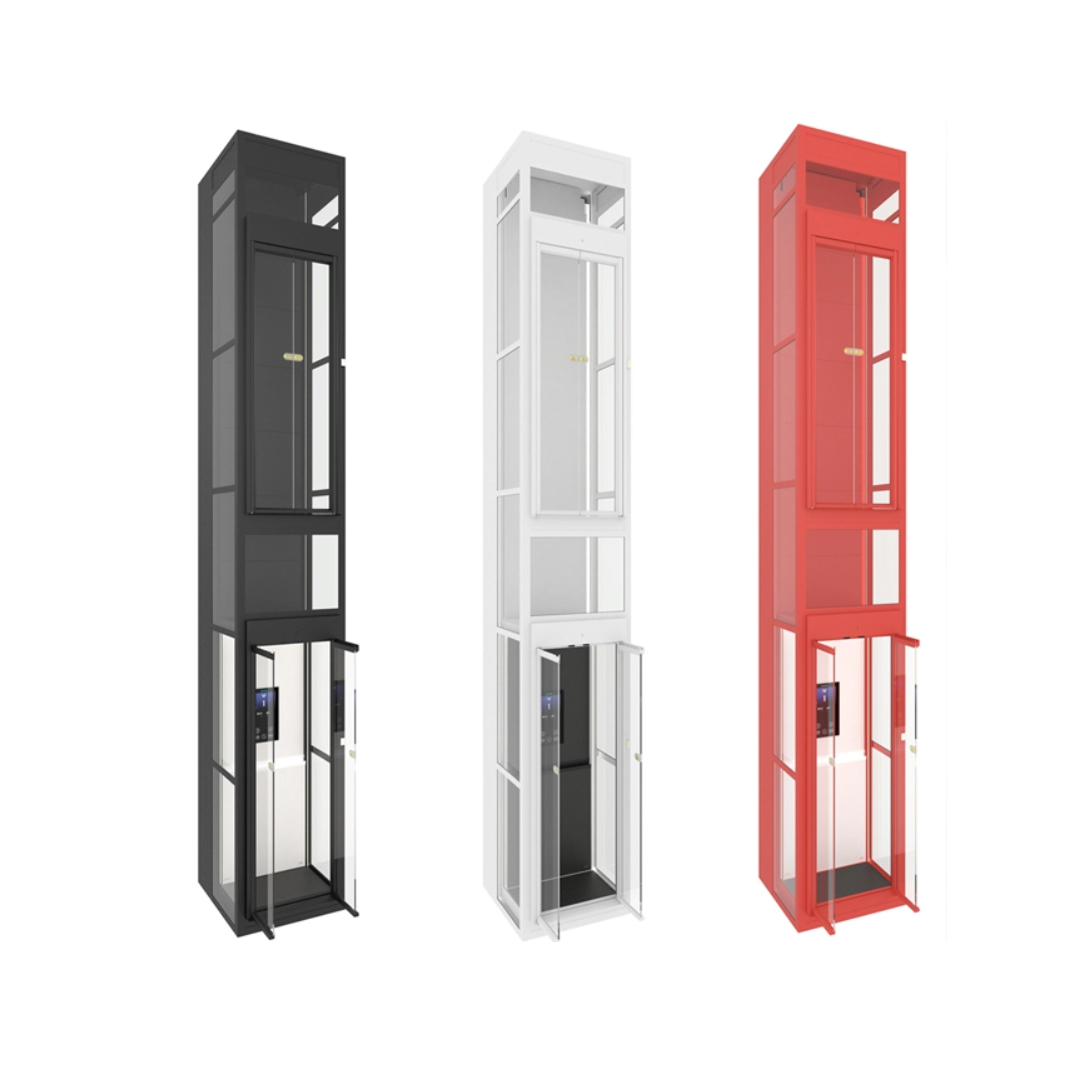

Color Customization

ZADIM Z2000 series can be customized with aluminum alloy hoistway and door frame color, six colors to show the style.

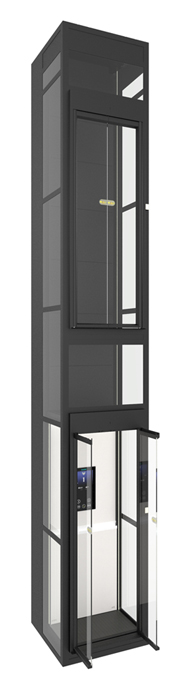

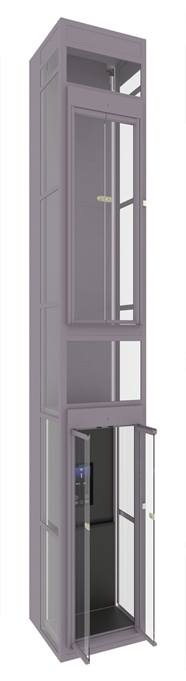

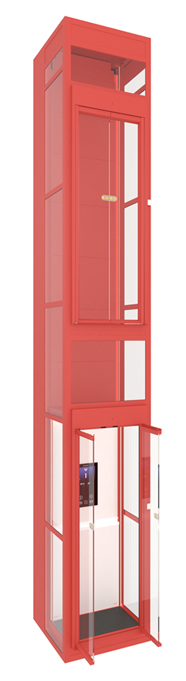

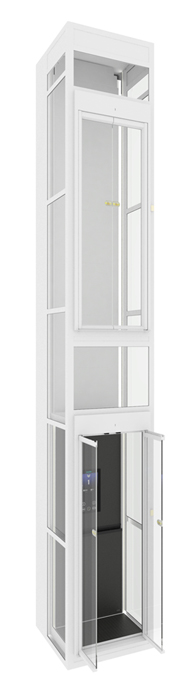

Matte Gray	Deep Blue	Refined Brown	Extreme Night Black	Extremely Day White	Fashion Red

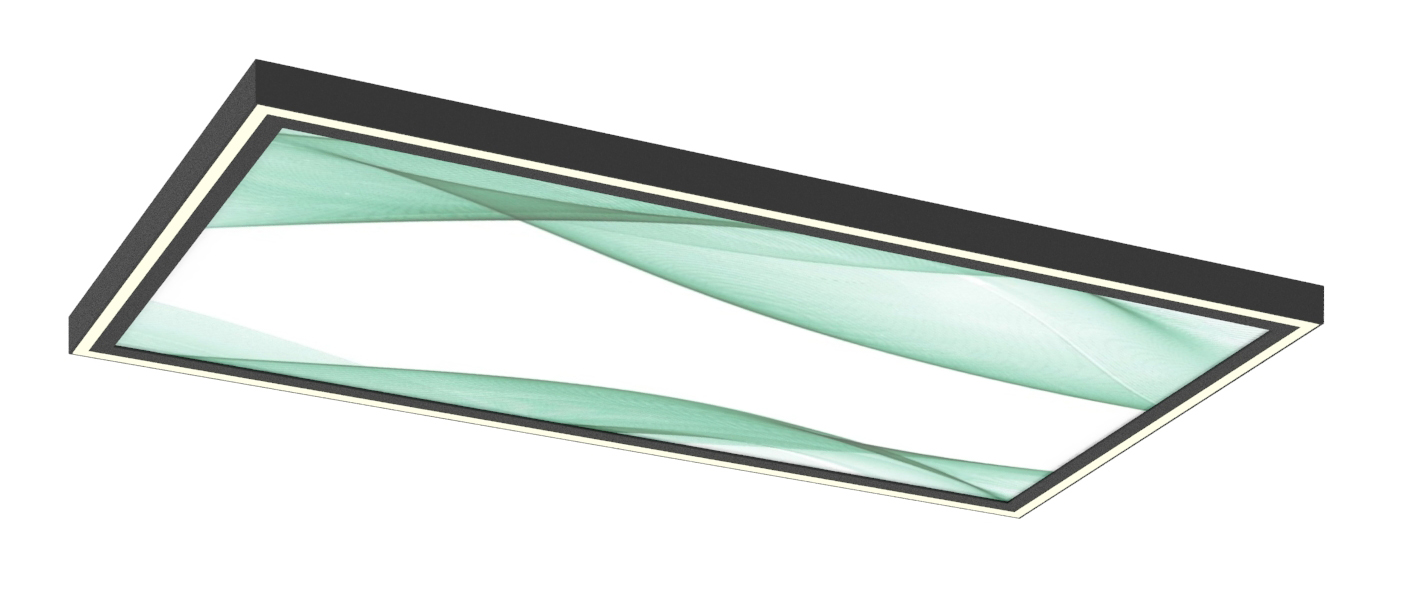

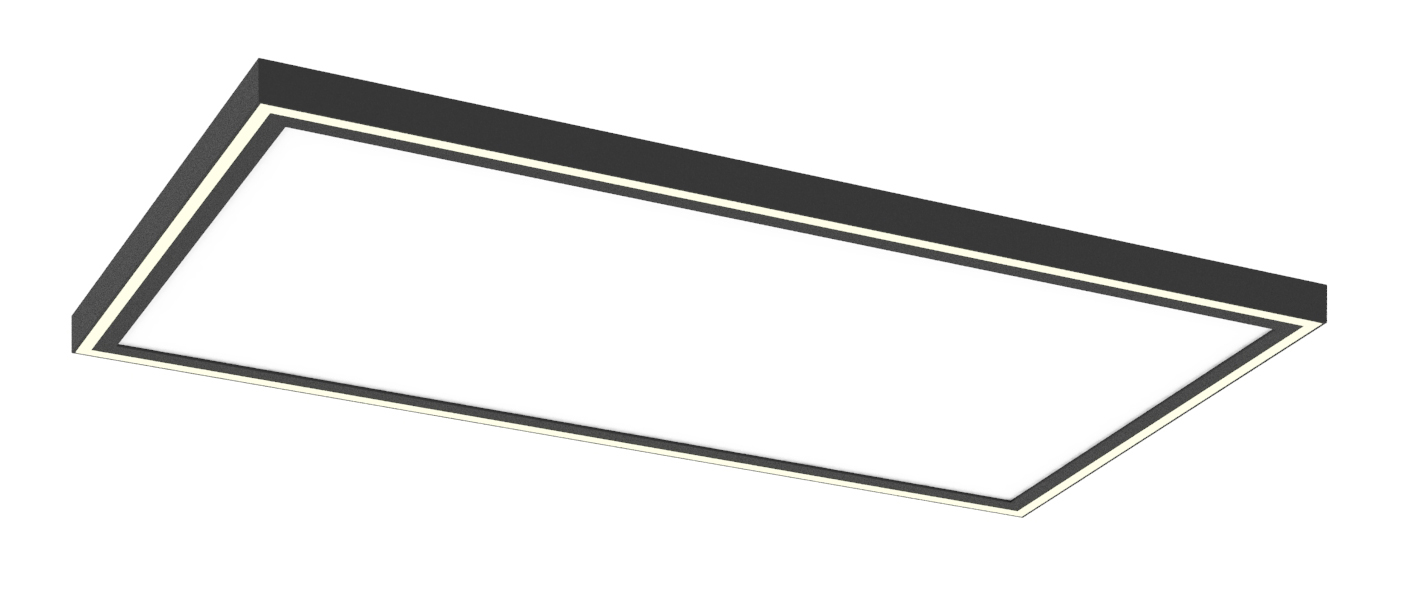

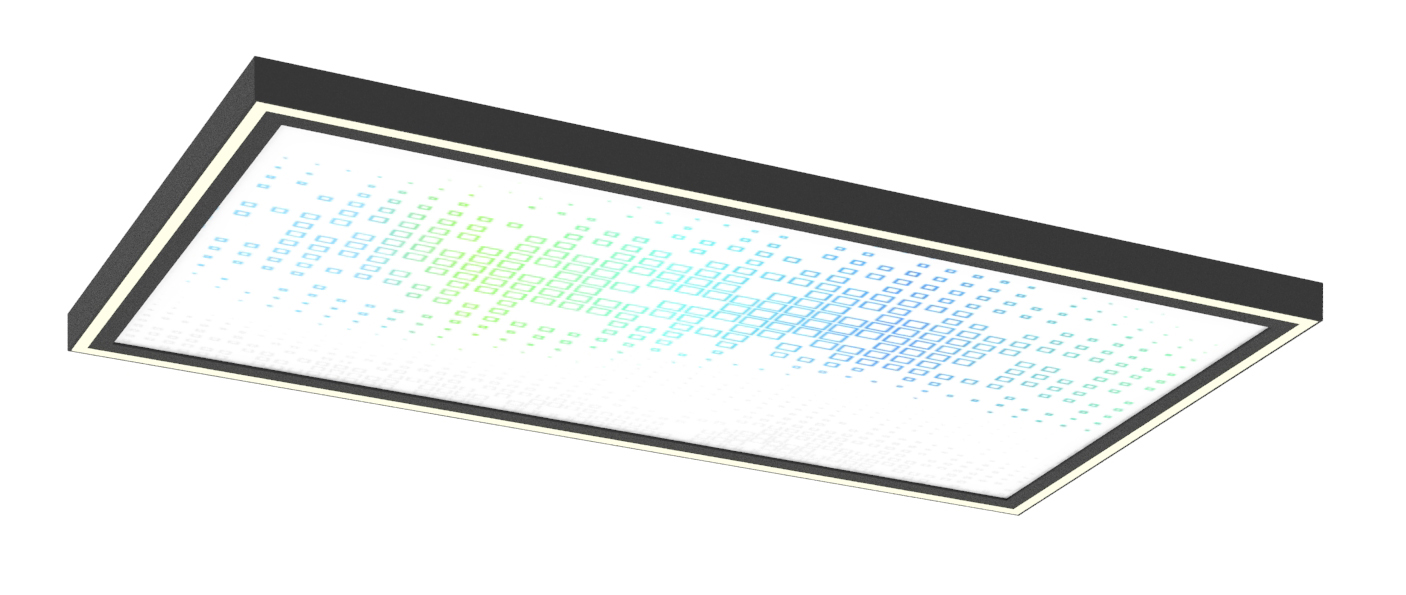

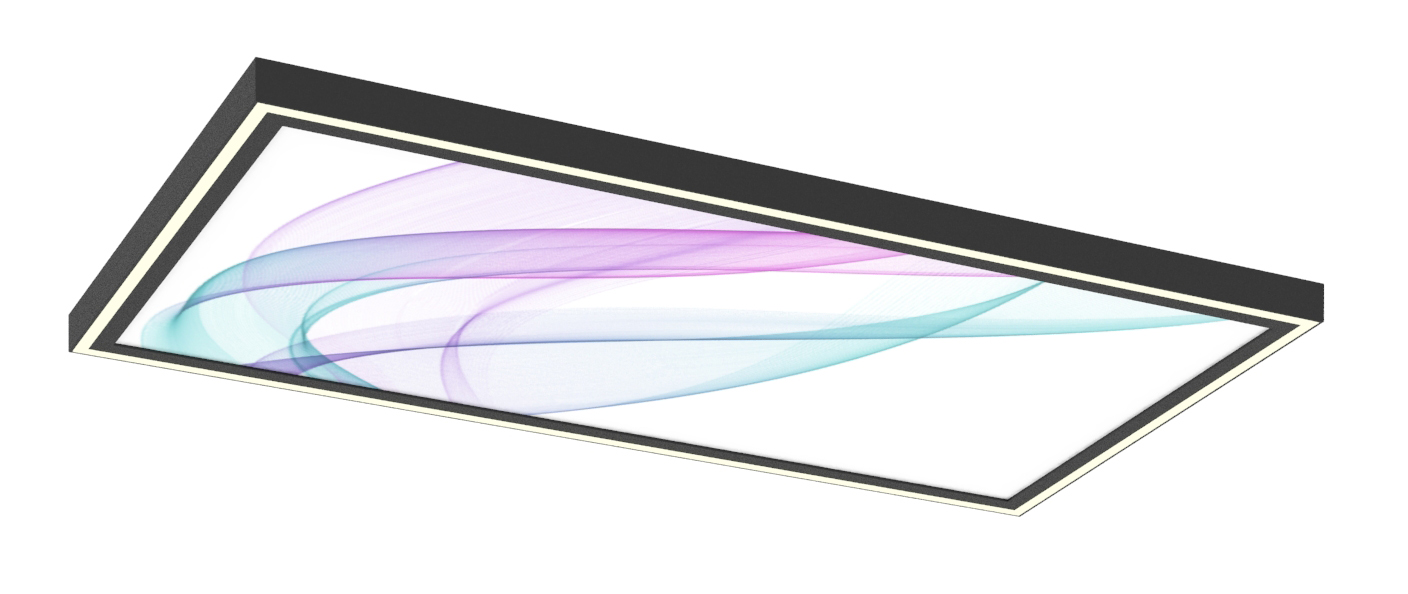

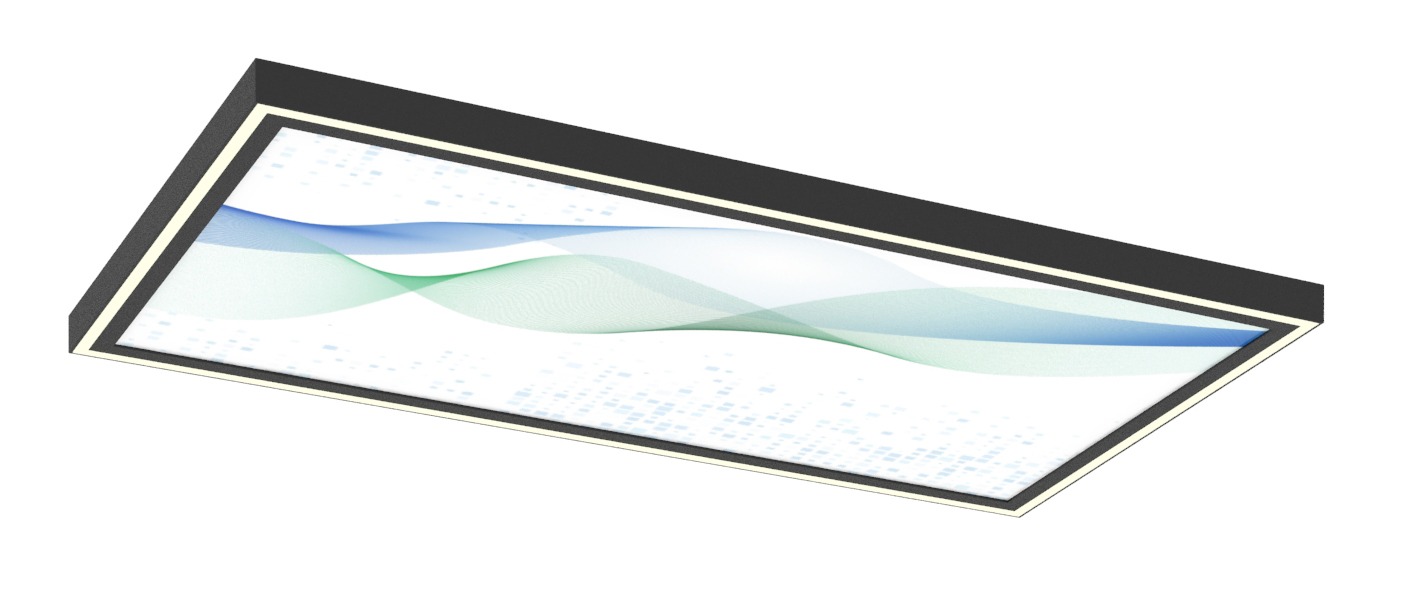

Custom ceiling

Multi-Texture Floor

Darkly Quicksand	Fashionable obsidion	Flowing Sandbeach
