Within the residential villa lift sector, screw-driven and steel-belt traction are the two dominant drive technologies. Neither is universally superior, and no single model suits every property. Solutions should be matched to individual building constraints and household-usage requirements.
Many homeowners receive one-sided sales advice and make ill-informed choices, leading to disappointment later. This article breaks down their differences in plain terms, referencing ZADIM product ranges.
Steel-belt traction lift: A traction machine drives steel belts, with the lift car and counterweight attached to opposite ends of the belts to create balance. The motor only needs to overcome residual unbalanced force. This mature technology is used for the vast majority of commercial lifts.
Screw-driven lift: A motor rotates a threaded drive screw. A nut fixed beneath the lift car travels along the rotating screw to move the cabin up and down. The structure is simple; no counterweight or dedicated machine room is required.
Screw-driven lifts have lower civil-engineering barriers. Taking ZADIM as an example, the full screw-driven range requires a pit depth of only 50 mm; in many installations the unit can sit directly on the finished floor. Minimum headroom at the top floor is 2400 mm, and the smallest external footprint is 860 × 860 mm. This makes them highly suitable for retrofitting into finished villas, duplexes and split-level homes where extensive floor excavation is not practical.
Modern domestic-optimised steel-belt traction lifts from ZADIM have a minimum pit depth of 130 mm and require top-floor headroom of 2550 mm or more. While these figures represent a large improvement over conventional commercial traction lifts, they still impose greater building-work demands than screw-driven alternatives. They are better suited to new-build projects or properties where limited floor-modification work is acceptable.
Comparison Item | ||
Pit depth | 50-100 mm; can install directly onto finished flooring | Typically 130-300 mm; shallow-pit variants available |
Minimum footprint | 860 × 860 mm | 860 × 860 mm |
Travel speed | 0.15-0.25 m/s | 0.3-0.4 m/s |
Operating noise level | 55-65 dB (comparable to normal conversation) | Below 45 dB (similar to a quiet library) |
Annual servicing cost | Approx. £240-£360 | Approx. £360-£720 |
Energy consumption | 40%-70% higher than traction types | Variable-frequency energy-saving operation |
Major-overhaul cycle | Screw-nut assembly replacement when worn; replacement cost £600-£1800 | Steel-belt service life up to 15 years |
Service life | Positional accuracy may decline after 8-10 years | 20-30-year operational lifespan typical |
Note: Cost figures are reference estimates for market illustration only.
Choose a steel-belt traction lift if: You have a pre-prepared lift shaft, ceiling height exceeds 2.8 m, and low-noise operation is a high priority.
Choose a screw-driven lift if: Space is extremely restricted (around 1 m² footprint), no deep pit is available, or top-floor headroom is limited.
Steel-belt traction systems balance cabin weight via a counterweight, placing low load on the motor. The ride is notably smooth, with minimal jolt on start-stop, performing excellently under frequent repeated use, ideal for multi-generation households with heavy daily usage.
Screw-driven lifts rely on mechanical screw-nut transmission, so operating noise is marginally higher than traction models. As travel height increases, screw length grows and transmission components experience normal mechanical wear. Regular servicing following manufacturer guidelines is essential. ZADIM provides a dedicated 10-year warranty for its screw-nut assemblies to reduce homeowner long-term concerns; nevertheless, one-to-two certified service visits per year remain required to monitor component wear and tear.
Screw-driven lifts are best matched to villas and duplexes of 2-4 floors. For taller buildings, extended screw lengths push up costs and reduce cost-effectiveness.
Steel-belt traction lifts cover private residences of 2-6 floors. Their smooth-ride advantage becomes more pronounced over longer travel heights.

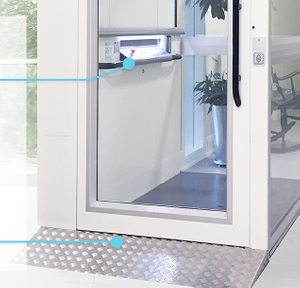

Prioritise ZADIM screw-driven lift if: - Your property is already fully finished and deep-pit excavation is not feasible - Installation space is very limited - Retrofitting an older villa - 2-to-4-storey duplex / villa, aiming for minimal building-work modifications You may select units manufactured in-house locally or the Swedish-origin Z6000 model according to your requirements.
Prioritise ZADIM steel-belt panoramic lift if: - New-build villa under construction - High-frequency daily household usage - Top-tier quietness and ultra-smooth travel are key priorities - Private residence of 4 floors or more - Spacious cabin required for wheelchair access
Do not trust one-sided sales claims. Reject oversimplified statements such as “traction lifts are universally superior to screw-driven ones” or “screw-driven lifts outperform all traction alternatives”. Your building’s physical conditions should always be the primary deciding factor. ZADIM maintains full-range original-factory product lines for both drive technologies. We follow a one-house-one-solution principle and will never force-fit a lift solution that clashes with your property layout.
