Minimum 860 × 860 mm! Dimension-planning Guide for Compact-space Home Lifts

Many townhouses, semi-detached homes and compact duplex villas offer very limited space for a lift. Available spots such as stair voids or inner corners often provide roughly only 1 m² of floor area. Numerous homeowners assume their property is too small for a home panoramic lift. In fact, Swedish-origin ZADIM has optimised its designs for compact private residences. The smallest footprint for its screw-driven models is just 860 × 860 mm – under one square metre. Even compact homes can accommodate a factory-integrated all-glass panoramic lift without sacrificing large amounts of usable indoor space.

Two key definitions must be distinguished when specifying: overall shaft external dimensions and internal car-cab clear dimensions. The 860 × 860 mm figure refers to the total external footprint of the complete shaft including frame, guide rails and drive mechanism, not the cabin interior. Many suppliers blur this distinction. When requesting quotations, always confirm: what external clearance is required on-site, the internal clear width and depth of the car-cab, and whether it allows single-person travel or wheelchair access.

ZADIM core range minimum-dimension overview

ZADIM’s smallest required footprint measures only 860 × 860 mm, less than the area of a standard 1 m² floor tile.

Key dimension-planning principles

1. Compact layout (0.8-1.2 m²) – fits two passengers, suitable for smaller homes with fewer occupants.

2. Plan shaft location early – prioritise vertical zones close to staircases, entrance halls or central atriums. All floor openings and structural modifications must be double-checked by both a structural engineer and manufacturer-supplied drawings.

3. Doorway dimensions – aim for a clear doorway width of ≥ 800 mm for easy wheelchair and pram access. Always follow official manufacturer civil-engineering drawings; do not build based on rough estimates.

4. Top-floor headroom – typical requirement spans 2.6-3.0 m; significant differences exist between drive-system types.

5. Cab-space efficiency ratio – for a given shaft footprint, larger internal car-cab dimensions are preferable. Within a 900 × 900 mm footprint, ZADIM’s factory-integrated glass-shaft design delivers generous cabin space within compact overall dimensions.

Priority ranking for compact-property installation locations

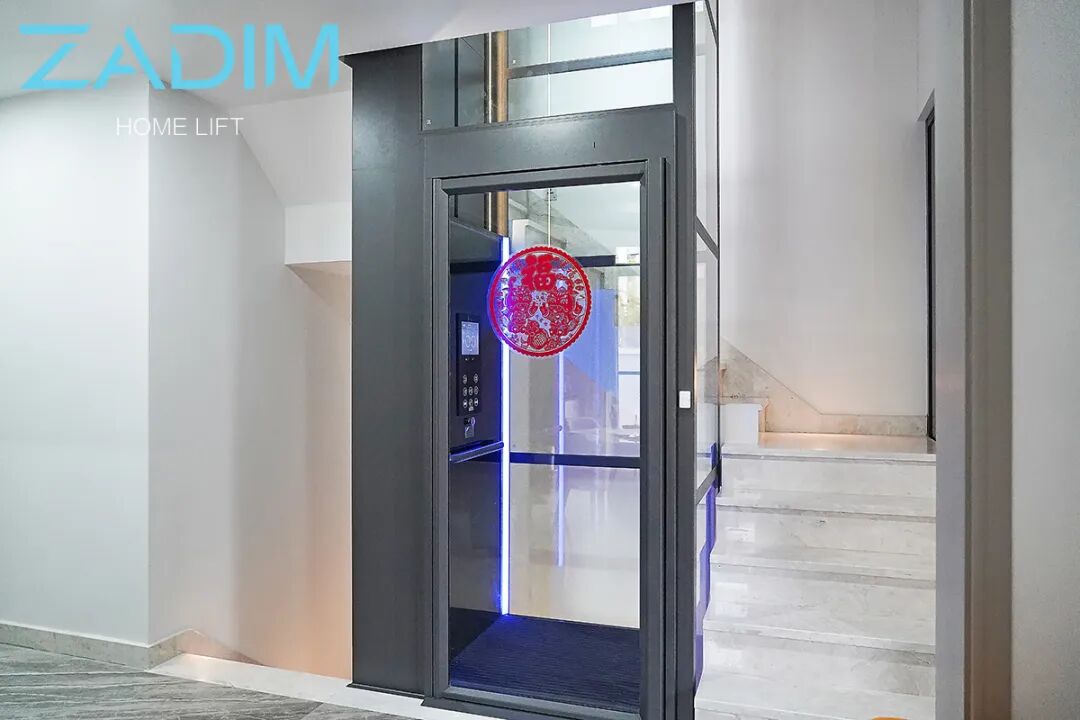

1. Stair void (highest priority): Makes full use of otherwise wasted central stair-well space without consuming usable floor area; delivers excellent panoramic views. This is the most frequent installation position in ZADIM real-world projects.

2. Indoor wall-side corner: Uses under-utilised corner space. Engineers will thoroughly verify wall and floor-slab load-bearing capacity prior to installation.

3. Ground-floor window-side position: Semi-outdoor installation is possible, though thorough waterproofing and moisture protection are mandatory.

Five critical pitfalls for compact-home planning

1. Do not rely purely on advertised minimum-size figures. Always arrange an engineer’s on-site survey. The 860 × 860 mm represents an absolute limit dimension; some installation tolerance margin must be kept. Protruding columns or wall sections can reduce usable space. Drawings do not always reflect real-site conditions.

2. Clarify core practical requirements. Ultra-compact footprints inevitably reduce cabin interior volume. If wheelchair access is required, avoid the tight-limit 860 mm setup and specify a minimum footprint of 1000 × 1000 mm or larger.

3.  Do not overlook civil-engineering constraints. A small footprint does not equal reduced headroom requirements. ZADIM screw-driven lifts need a minimum top-floor headroom of 2400 mm. Even the smallest lift cannot be fitted if ceiling height is insufficient.

4. For compact homes, favour factory-integrated panoramic glass shafts. Transparent glass visually expands the sense of space; fully enclosed cabins can amplify feelings of confinement. ZADIM’s Scandinavian-aesthetic integrated shafts feature clean, slim lines and avoid bulky visual impact in confined zones.

5. Drive-system guidance: Where available space is below 1 m², screw-driven technology is preferred. Counterweight-dependent steel-belt traction systems can hardly achieve the extreme 860 × 860 mm footprint.

An 860 × 860 mm footprint makes lift retrofitting viable for highly compact residences, yet this extreme specification is best suited mainly for single-passenger travel. Where wheelchair access is needed, specify larger overall dimensions. Final model selection must always be based on ZADIM’s on-site engineering survey report rather than drawing-only assumptions.
