Glass for panoramic home lifts acts both as a decorative element creating spatial openness and as a critical safety component for all household members. Many homeowners prioritise appearance while overlooking glass substrate, thickness and privacy-treatment options, leading to insufficient glass strength, severe glare and full visibility into the cabin.
Standard float glass must never be used for home lifts. Upon impact it shatters into sharp shards presenting severe laceration hazards. All ZADIM panoramic-shaft and car-door glass is laminated safety glass with a PVB interlayer sandwiched between two glass sheets. When fractured by impact, fragments remain firmly bonded to the interlayer instead of flying off, delivering extra safety for children. Laminated glass also offers moderate sound-insulation performance. Glass thickness is matched according to shaft height and panoramic-surface area. Heavier-duty specifications are adopted for four-sided-panoramic large-residence projects to satisfy wind-load structural requirements, complying with European EN 81-41 safety standard.
Pitfall warning: Some low-cost panoramic lifts use ordinary tempered glass. Though tempered glass breaks into blunt granules, whole-panel detachment can occur upon heavy impact, offering lower-grade safety compared with laminated glass. Always specify glass material within quotations and formal contracts.
Highest light transmission. Daylight flows freely through the shaft. Ideal for stair-void and atrium installations, fully revealing the clean lines of Nordic-style aluminium frames. Suits minimalist villas with abundant natural light.
Drawback: Full interior visibility. Poor privacy if the lift faces sofas or bedroom corridors.
Best-fit: Stair voids, double-height atriums with no nearby high-frequency-activity zones. Widely adopted in ZADIM high-end real-world villa projects.
ZADIM’s highly-recommended balanced solution. The lower frosted section obscures passengers’ bodies, while the upper section preserves daylight and panoramic views without making the space feel cramped. Observers outside cannot make out figures inside the cabin. Perfect for lifts facing living-room areas or corridors; this is the most-popular option among residential customers.
Uniform diffused finish blocking external views into the cabin for maximum privacy. Drawback: light passes through yet vision is blocked, reducing the open-feel of a panoramic lift and tending to make compact rooms feel gloomy.
Best-fit: Lifts positioned directly opposite bedroom doors or living zones for households with extreme-privacy requirements.
Low-reflection coating reduces indoor-light mirror-effect reflections, preventing the glass from turning into a mirror at night when interior lights are switched on. Light-grey / smoke-grey tinted glass can be specified to match metal profiles and aluminium-window finishes, fitting light-luxury and modern-dark-themed interiors. ZADIM supplies custom smoke-grey and light-grey laminated glass for visual consistency with whole-house window systems.
Three-sided panoramic: One solid rear panel plus three glass sides. Rear panel can be finished in metal or decorative veneer for improved privacy and reduced overall cost. The preferred choice for most duplex and townhouse projects. Ambient-light strips and cabin decorations can be integrated into the rear panel.
Four-sided full-panoramic: Fully glass-enclosed for maximum visual impact, best suited for atriums and double-height large detached villas. Offers the weakest privacy protection; pairing with gradient-frosted glass is strongly advised to avoid full exposure of cabin-occupants.
Contrary to common belief, properly-designed panoramic-lift glass-and-frame assemblies do not block light; they can enhance spatial openness. Key principles:
Adopt ultra-clear tempered base glass with light transmittance above 91 %.
Slim-profile frames minimise visual obstruction.
Soft integrated LED lighting avoids dizziness caused by glass-surface reflections.

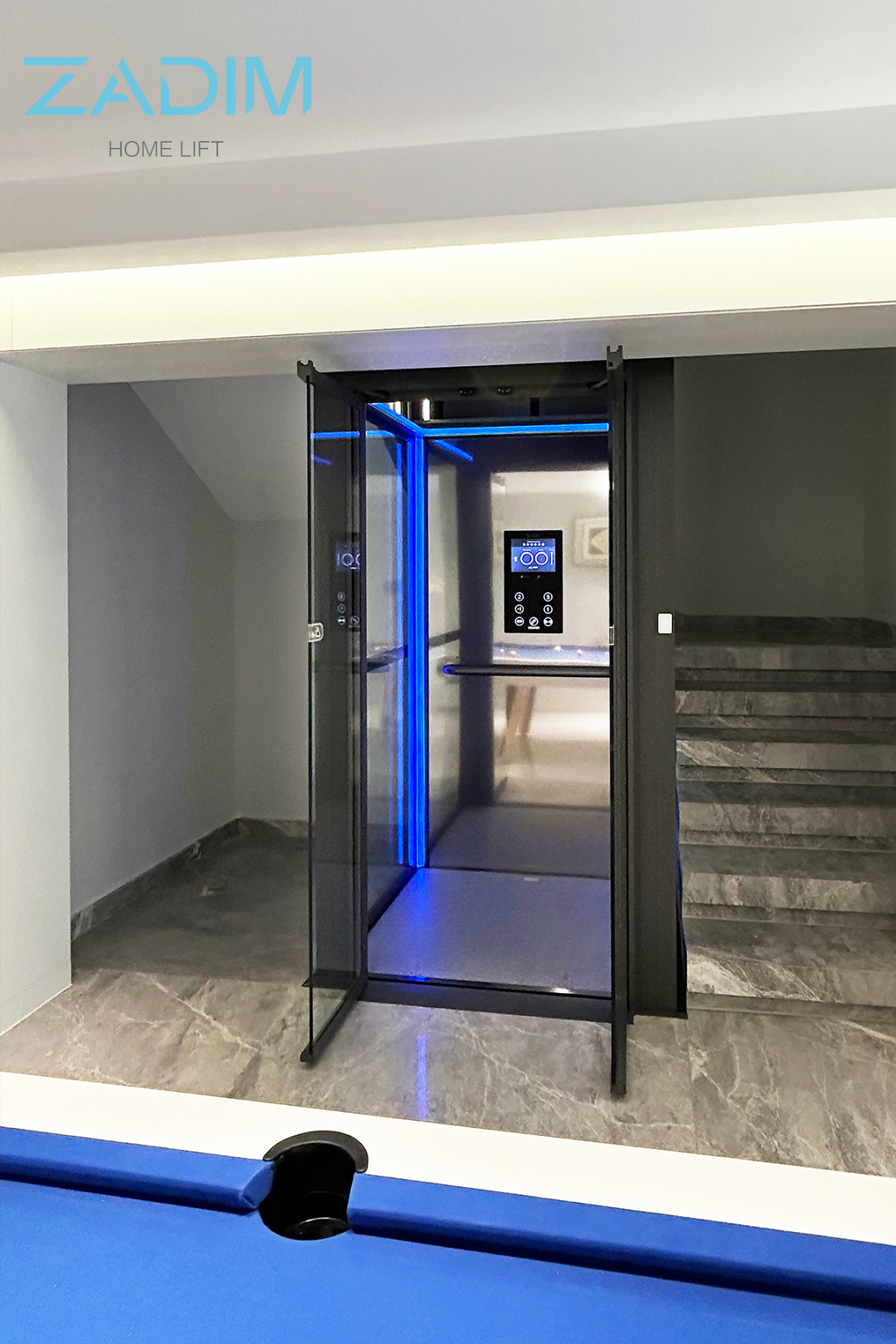

The ZADIM Z8100 wall-rear-mounted three-sided-panoramic layout delivers immersive 270-degree visibility, allowing light to radiate into surrounding rooms for an open, spacious impression.
Panoramic-lift transparency is double-edged: outward views are desired, yet excessive inward visibility should be avoided. Practical solutions:
Gradient-frosted glass: clear upper zone for outward viewing, frosted lower zone concealing body-height private areas.
Grey-tinted glass: retains openness while lowering inward-view transparency. In one Hefei Z3000 installation, pale-white shaft framing paired with grey glass achieves subtle, understated elegance.
Thoughtful cabin-enclosure design protecting passenger privacy alongside safety.
Prioritise factory-supplied laminated glass. Reject third-party aftermarket glass replacement, which risks shaft-frame damage and voiding factory warranty.
Night-time mirror-reflection deserves careful attention. Strong villa interior lighting causes mirror-like effects on standard glass; low-reflection coating is recommended.
Avoid large-area full-frosted glass in compact-footprint homes; gradient-frosted glass prevents a cramped visual atmosphere.
Many no-brand products pass off ordinary tempered glass as dedicated panoramic-lift glass. While visually transparent, impact resistance is inadequate. Long-term lift-operating vibration may trigger cracking or spontaneous breakage within months. Replacement costs can reach £3 600-£6 000 alongside damage to existing interior finishes. Always verify glass specifications and safety certifications before ordering.
