High-End Lift Solutions for 4-Storey Detached Villas – How to Choose Between Screw-Drive and Steel-Belt Models

For many owners of 4-storey detached villas – a mainstream high-end residential type – the decision between a screw-drive lift and a steel-belt traction lift is a common dilemma during the renovation phase. Neither is inherently superior; the right choice depends on four core factors: structural conditions, household composition, frequency of use, and renovation stage.

1. Screw-Drive vs. Steel-Belt – Core Technical Differences

These two technology platforms define the character of the lift. The key differences are:

2. How to Choose for a 4-Storey Detached Villa

Based on the characteristics of a 4-storey detached villa, consider the following guidelines:

(1) Prioritise Steel-Belt Traction If:

• Your villa is in the renovation phase and can accommodate a 130 mm pit.

• You seek an exceptionally smooth, quiet ride – comparable to a premium car.

• You want faster travel speeds to minimise waiting time.

• You place a higher value on long-term ride comfort and operational efficiency.

(2) Prioritise Screw-Drive If:

• Your villa has been occupied for years and cannot accommodate deeper pit excavation (e.g., due to underfloor heating or a basement).

• You have an uncompromising requirement for safety – wanting to eliminate any risk of free-fall at the physical structure level.

• Structural conditions are extremely limited, and you want to minimise the impact of installation on the building.

3. Four Common 4-Storey Villa Scenarios – Direct Selection Guide

(1) Scenario 1: Finished Villa – Retrofit Installation (Most Common)
Preferred Choice: Z6000 / Z7000 Screw-Drive Panoramic Lift

Many 4-storey villa owners only decide to add a home lift after moving in – with marble floors, underfloor heating, and waterproofing already in place. Steel-belt models require deeper pit excavation, which risks damaging underfloor heating and waterproofing – leading to extensive demolition and costly restoration. The screw-drive requires only a 50 mm pit – minimal floor-level finishing is sufficient. Modular installation means a short construction period with minimal dust, preserving the existing finishes. For stairwell voids ≤ 1000 mm, the 860 mm ultra-compact solution enables a panoramic lift without compromise.

(2) Scenario 2: New-Build 4-Storey Villa – Lift Shaft Planned from the Start
Preferred Choice: Z8000 / Z9000 Steel-Belt Panoramic Lift

During the construction phase, pit and space can be planned in advance – no concerns about renovation disruption. With frequent travel across four floors, the 0.3-0.4 m/s speed advantage of steel-belt becomes evident, with smooth acceleration and lower noise. Ideal for multi-generational households with elderly members, regular wheelchair or pushchair use, and families planning to stay for 10+ years – where long-term ride comfort matters most.

(3) Scenario 3: Narrow Stairwell Void – Only the Central Space Is Available
Preferred Choice: Z7000 Screw-Drive

Many 4-storey villas have stairwell voids of only 900-1100 mm – too narrow for standard steel-belt models. ZADIM‘s screw-drive lift requires only 860×860 mm to achieve three-sided panoramic viewing, eliminating the need to settle for a basic enclosed lift – balancing aesthetics with functionality.

(4) Scenario 4: Ample Space – Undecided Between Whole-Unit Import and Value

• For a whole-unit Swedish import with non-destructive retrofitting: Choose the Z6000 Screw Series.

• For Nordic aesthetics, good structural conditions, and budget control: Choose the Z8000 / Z9000 Steel-Belt Series (Swedish design standards, locally standardised production).

4. Five Key Pitfall-Avoidance Tips for 4-Storey Villa Selection

a. Do not assume that a 4-storey home cannot use a screw-drive lift. Screw-drive models are suitable for 4-storey homes. For high-frequency, long-term occupancy, prioritise steel-belt; for lower-frequency use and structurally constrained retrofits, prioritise screw. The choice depends on usage intensity and structural conditions, not simply floor count.

b. Ensure the panoramic shaft is an integrated factory solution. Whether screw or steel-belt, reject “lift machine + on-site welded steel structure” combinations. ZADIM‘s aluminium integrated shafts conceal all cables and guide rails, delivering a cleaner, more refined look in the 4-storey atrium.

c. Households sensitive to noise should survey the installation position carefully. If the lift is adjacent to bedrooms: for new-build homes, prioritise steel-belt; for finished retrofits where only screw is feasible, confirm noise-reduction optimisation with the brand in advance.

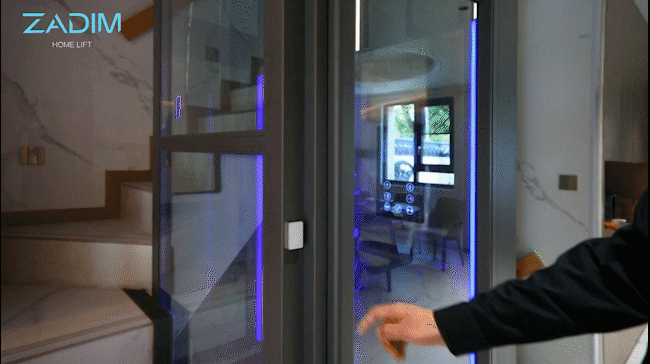

d. Confirm door opening type to match staircase circulation. Each floor of a 4-storey villa may have a different stair layout. Prioritise automatic swing glass doors to avoid interference with stair treads and ensure safe, smooth entry/exit on every floor.

e. Ensure safety features are standard and stated in the contract. ARD automatic levelling during power outages, light curtain anti-trapping, and emergency communication systems must be included. Screw models offer inherent mechanical self-locking, while steel-belt models feature multiple layers of protection – the safety baseline is consistent across both product lines.

There is no universally perfect home lift type for a 4-storey villa. Structural conditions are the first threshold; household usage habits are the second criterion. The most accurate solution can only be determined through a professional on-site survey, based on the specific conditions of your home
