Installing A Panoramic Lift in The Stairwell Void – ZADIM Real-Life Solution Reference

In villa renovations, the stairwell void is the prime location for installing a panoramic lift. It makes full use of the central unused space without encroaching on living rooms or corridors; the transparent glass opens sightlines between floors, making the lift a natural focal point of the atrium.

However, many homeowners face concerns: the void size may be too small; finished interiors cannot accommodate extensive structural work; how to integrate with a spiral staircase; which glass configuration to choose.

Drawing on numerous ZADIM completed case studies, this article breaks down layout solutions, dimensional references, model selection, colour matching, and key pitfalls for installing a panoramic lift in the stairwell void – offering a practical reference for modern light-luxury and minimalist villas.

1. Core Advantages of Installing a Panoramic Lift in the Stairwell Void

(1) Maximised Space Utilisation
Activates the unused space within L-shaped, three-run, or spiral staircases. The lift’s path aligns with the staircase circulation, eliminating the need to sacrifice functional areas – ideal for townhouses and compact duplexes.

(2) Enhanced Spatial Openness
Enclosed cabins can make stairwells feel oppressive. A factory-integrated glass panoramic shaft invites natural light, reduces the visual bulk of the structure, and improves daylighting in the atrium.

(3) Aesthetic Integration
The lift sits seamlessly between the staircases, with stone treads, glass balustrades, and the lift frame naturally complementing each other – creating a unified design language and a soft-furnishing feature that spans multiple floors.

(4) Installation-Friendly
ZADIM‘s all-series aluminium prefabricated integrated shafts require no on-site masonry or welded steel structures. Modular assembly significantly shortens construction time.

Important Note: During site surveying, confirm that the void dimensions are vertically aligned across all floors. For stairwell voids with varying widths, prioritise an integrated panoramic lift with stronger structural adaptability.

2. Three Main Stairwell Layout Solutions – ZADIM Real-Life Case References

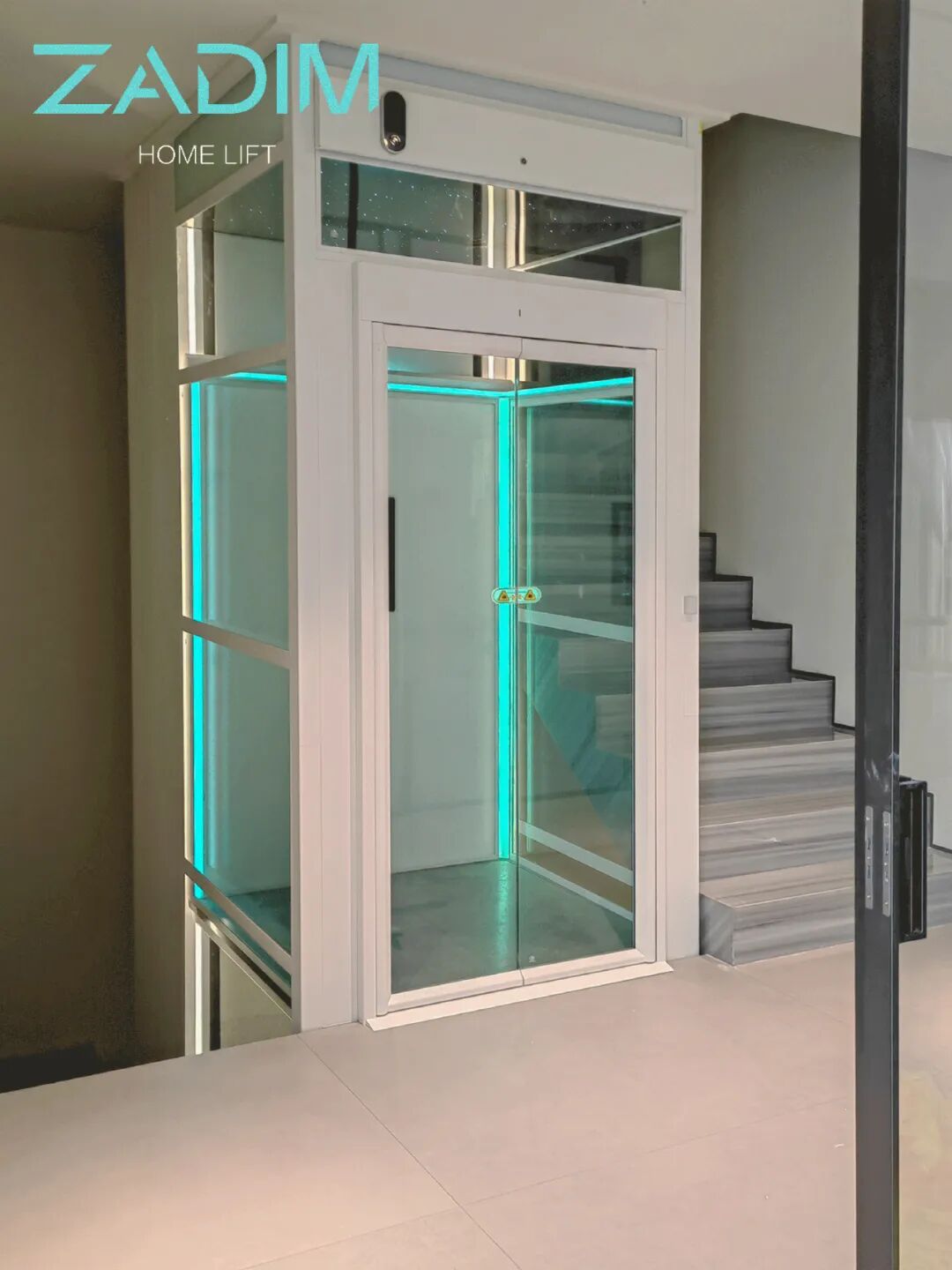

• Solution 1: L-Shaped / Three-Run Straight Stairwell Void (Most Common)

• Suitable Home Types: Standard townhouses, duplexes, split-level homes.

• Spatial Characteristics: Square or rectangular void with regular dimensions; reserved space typically 960 1500 mm.

• Panoramic Configuration: Three-sided full-view (preferred) or single-side front view.

• Recommended Models:

  1. Finished older villas: Z6000 / Z7000 Screw Series – minimum installation size 860×860 mm, only 50 mm pit depth – virtually no floor demolition required.

  2. New-build detached villas: Z8000 / Z9000 Steel-Belt Series – quiet and smooth, ideal for high-frequency multi-generational use.

• Colour Reference:

  1. Modern minimalist (black/white/grey): Midnight Black frame + ultra-clear transparent glass.

  2. Cream / Italian light-luxury: Polar White or Grey Gold Sand frame.

  3. Dark, understated luxury: Grey Gold Sand frame + semi-frosted privacy glass.

Solution 2: Spiral (Curved) Staircase Centre Installation

• Suitable Home Types: Large detached villas, double-height atriums.

• Spatial Characteristics: Circular or elliptical void – refined and ceremonial.

• Selection Tips: Prioritise compact screw-drive panoramic lifts; avoid bulkier traditional traction models that require more space.

• Recommended Configuration: Three-sided wrap-around panoramic glass + star-lit ceiling for an immersive ride experience.

• Key Pitfall: The spiral void inner diameter should be ≥ 1100 mm – anything smaller risks interference between stair treads and the lift.

Solution 3: Narrow Void – Small Duplex (Common in Upper Split-Level Units)

• Challenge: Void width < 1000 mm – many brands cannot offer a panoramic solution.

• ZADIM Advantage: Optimised screw-series structure allows a panoramic lift in just 860×860 mm – no need to compromise with an enclosed cabin.

• Glass Recommendation: Clear glass on the front face; lightly frosted glass on the sides – balancing daylighting with privacy.

3. Summary of Key Advantages

ZADIM‘s stairwell-void panoramic installations typically feature:

1. Integrated glass panoramic shaft – no traditional concrete hoistway required; no structural damage.

2. Extreme space efficiency – minimum clear dimensions from 950×1450 mm or 960×1310 mm – installation in under 1 m².

3. Staircase wrap-around design – lift and staircase become a unified whole; no additional handrails needed; enhanced sense of safety.

4. Rich customisation options – frame colours (Polar White, Midnight Black, Champagne Gold, Grey Gold Sand, etc.); cabin wall materials (stainless steel, leather, wood veneer, etc.) – all tailored to your needs.

5. Multiple door configurations – automatic swing, manual, single or double opening.

6. Universal style adaptability – from modern minimalism to new Chinese classic.

4. Stairwell Installation – Dimensional Reference Guide

5. Choosing the Right Panoramic Glass Configuration

1. Three-sided full-view (recommended) – ideal for square/rectangular voids and atrium living rooms. Maximises visual impact; sightlines connect across floors – perfect for photography.

2. Single-side view + frosted sides – suitable when the stairwell is adjacent to bedrooms or corridors where privacy is needed.

3. Split-height glass – frosted lower section, clear upper section – balances daylighting and privacy; a popular choice for light-luxury interiors.

Mandatory Safety Standard: All glass must be laminated toughened ultra-clear glass – shatter-proof; especially important for families with elderly members and children.

6. Five Essential Pitfall-Avoidance Tips for Stairwell Installation

1. Reject on-site welded steel shafts. Many vendors sell the home lift machine and steel frame separately, welding and sealing on-site – resulting in exposed wiring, rough joints, and eventual rust and leakage. Prioritise ZADIM‘s factory-prefabricated aluminium integrated shafts with fully concealed cables and guide rails.

2. Check stair beams and structural load in advance. For older villas and second-hand homes, confirm stair beam heights during surveying to avoid interference with the lift‘s top clearance; verify floor-slab opening feasibility.

3. Door opening direction must match staircase circulation. Prioritise automatic swing doors – avoid centre-opening double doors unless appropriate. Ensure that when the door is open, entry/exit does not conflict with stair treads.

4. Let structural conditions determine the model. Finished occupied homes with no demolition allowance → screw series; full-house renovations with localised floor work possible, multi-storey high-frequency use → steel-belt series.

5. Unify lighting with the staircase atmosphere. Warm 3000K stair LED strips should be matched with the lift‘s adjustable-colour-temperature concealed ambient lighting + star-lit ceiling. Mixed warm/cool lighting can disrupt the overall spatial quality.
