Compact Home Lift with a Footprint Under 1m² – ZADIM Complete Package Price Reference

Many owners of duplexes, split-level homes, and older villas find themselves with extremely limited available space – stairwell gaps, corner nooks, often less than 1m². They would like to install a home lift, but worry about major structural work or digging a deep pit. Many compact lifts on the market are basic platform lifts with no proper cabin, compromising ride comfort, sealing, and aesthetics.

The Swedish brand ZADIM offers a solution with a minimum footprint of just 860×860 mm – under 1m² – yet with a fully enclosed cabin and a factory-integrated panoramic glass shaft. It combines practicality, Nordic design, and safety standards, making it ideal for small-space residential installations.

Please note that home lifts are highly customisable products – final prices vary depending on the number of stops, dimensions, configuration, and installation conditions. Below is a price reference and key feature overview for different series to help you compare.

I. Series Price and Feature Overview

II. Detailed Series Breakdown

Z5000 / Z5100 Lifestyle Series – Tailored for Duplex Homes

If your home is a 2-3 storey duplex, this series is the most targeted choice. It maximises space utilisation without compromising functionality – the Z5000 requires a minimum footprint of just 860×810 mm, while the Z5100 needs 860×860 mm. The pit depth is only 50-70 mm, making it very retrofit-friendly for finished homes.

Price range: approximately 200,000 – 250,000 RMB (starting price).

Key features:

• 5mm transparent acrylic shaft walls with three-side door openings

• Starlight ceiling as standard

• Z5000 features a split-cabin wall design for easy installation

• Integrated shaft frame – no separate machine room required

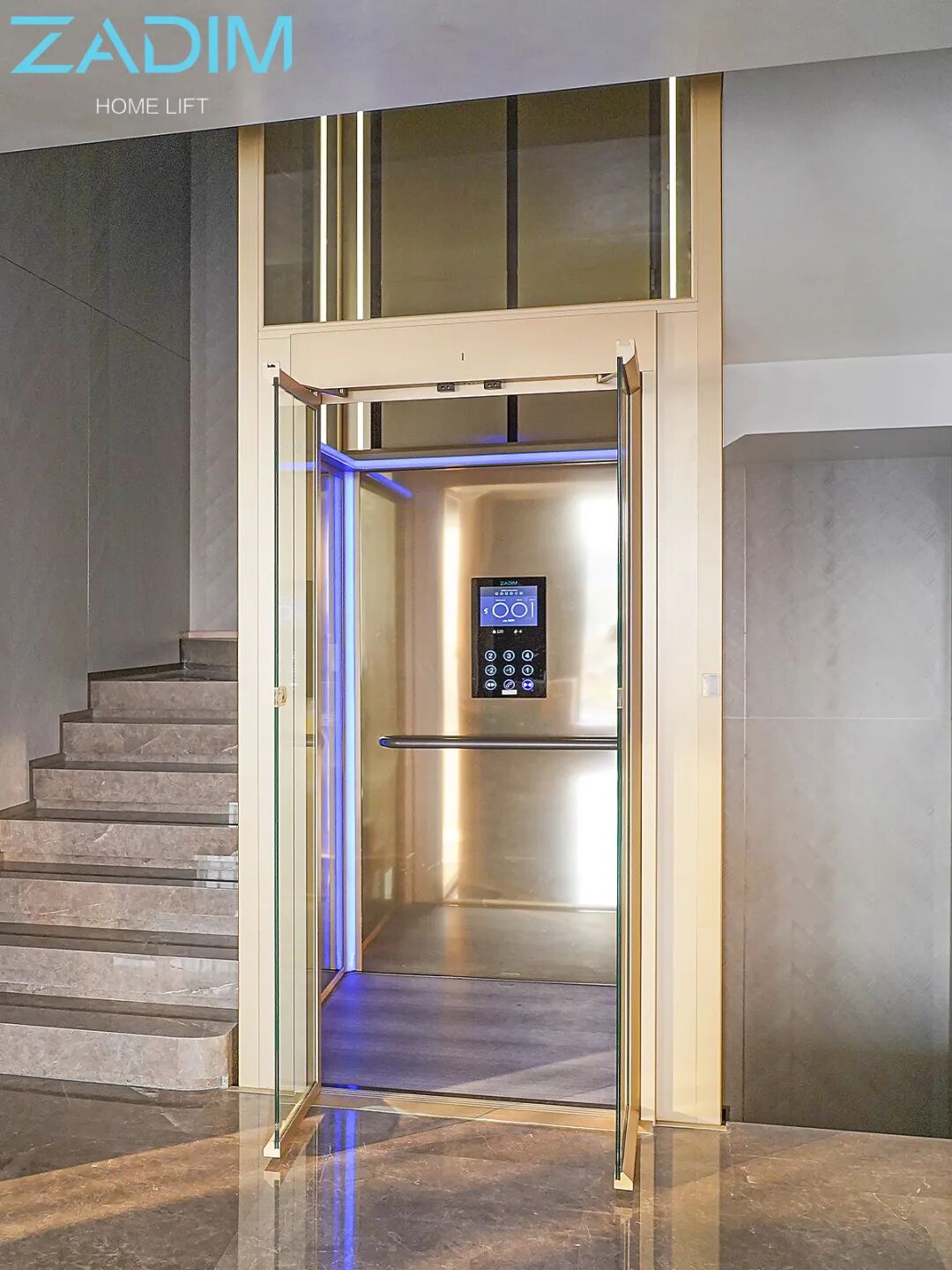

Z8000 / Z8100 Classical Series – Best-Seller, Great Value

This is ZADIM‘s flagship model and the most widely discussed series. It uses steel-belt traction technology with a triple shock-absorbing system and four core safety hardware systems plus nine safety protection systems. Minimum footprint is 860×860 mm, with a pit depth of just 130 mm.

Price range: approximately 200,000 – 300,000 RMB (starting price).

Key features:

• Standard glass automatic swing doors

• Integrated transparent shaft – panoramic views

• Touchscreen controls with colour-changing lighting

• Starlight ceiling included

• Automatic levelling during power outages

Z9100 Luxury Series – The Ultimate Choice

As the flagship series, the Z9100 pursues the highest levels of luxury in design, materials, and functionality. It features a steel-belt traction system with a reinforced car frame. Minimum footprint is 960×910 mm, with a pit depth of 130 mm.

Price range: approximately 300,000 – 400,000+ RMB (starting price).

Key features:

• Premium leather cabin walls for a refined appearance

• Standard hidden cabin design with glass automatic doors

• Integrated transparent shaft – full panoramic views

• Upgraded control panel and high-end customisation options

• Multiple exclusive colour and leather choices

Z6000 Compact Screw-Drive Series – Complete Package Reference (All-Inclusive)

The standard all-inclusive package includes: Swedish-engineered screw-drive system, compact factory-integrated aluminium alloy panoramic shaft, fully enclosed cabin, standard three-side panoramic glass, Scandinavian minimalist interior, automatic levelling during power outages, transport and lifting, customs clearance, installation and commissioning, and factory warranty.

Not included: floor reinforcement, stair removal, ramp construction, or bespoke customisation upgrades.

Key hardware highlights of the compact series:

1. Minimum footprint of 860×860 mm – under 1m² – fits in stairwells, corners, and tight gaps.

2. Swedish-engineered screw-drive system with a 50mm ultra-shallow pit – can be installed with a ramp instead of a pit, preserving existing finishes.

3. Factory-integrated aluminium alloy fluorocarbon-coated panoramic shaft with a fully enclosed cabin – better privacy and sound insulation compared to open platform lifts.

4. Machine-room-free design – no separate machine room needed. Features automatic levelling during power cuts, light curtain anti-trapping, and overload protection.

5. Standard minimalist panoramic interior with starlight ambient lighting – suits modern minimalist and light-luxury interiors.

III. What Adds to the Cost of a Compact Model?

1. Door configuration upgrades: standard single-opening doors offer the best value; through-doors or side-opening doors increase complexity and add 15,000 – 30,000 RMB.

2. Interior and shaft customisation: bespoke frame colours, mirror-finish cabin walls, solid wood veneer panels, taller shafts.

3. Smart features: facial recognition, IoT monitoring, high-capacity backup power.

4. Site conditions: stair cutting, floor opening and reinforcement, difficult indoor lifting – these are building works, not part of the lift equipment itself.

IV. Summary and Recommendations

ZADIM offers a complete range for compact homes – from the high-value, practical models to the ultimate luxury flagship. To obtain the most accurate quotation, the most effective approach is:

1. Initial online enquiry: visit the ZADIM website, provide basic details such as building type and number of stops, and receive a preliminary estimate.

2. Book an on-site survey: arrange for a professional site visit to take measurements and receive a precise installation plan and quotation.

3. Visit a showroom: experience the product in person and discuss your specific requirements with a consultant.

For further details, you can contact the brand directly via their official website.
