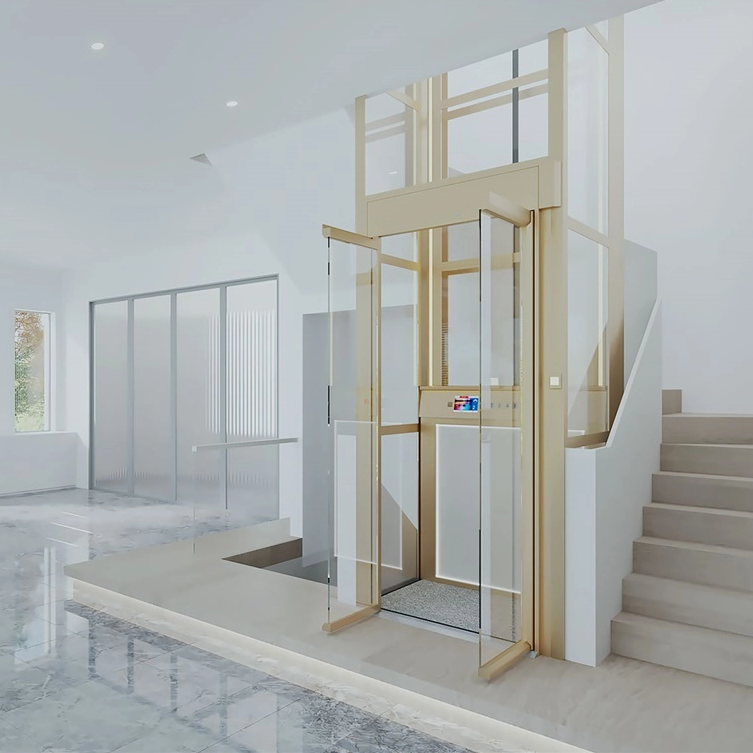

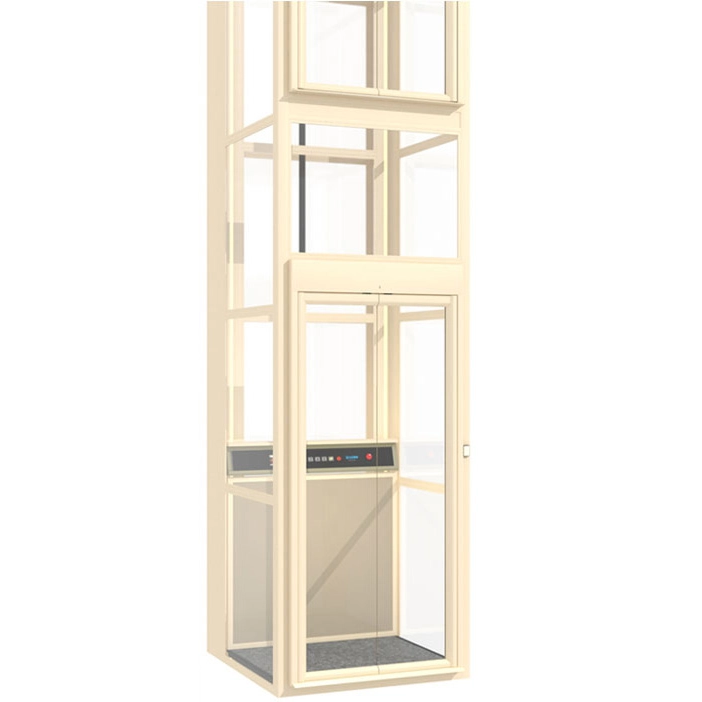

Z7000 series home lift

Z7000 series home lift

Bulit an exclusive tailored lift for your beloved

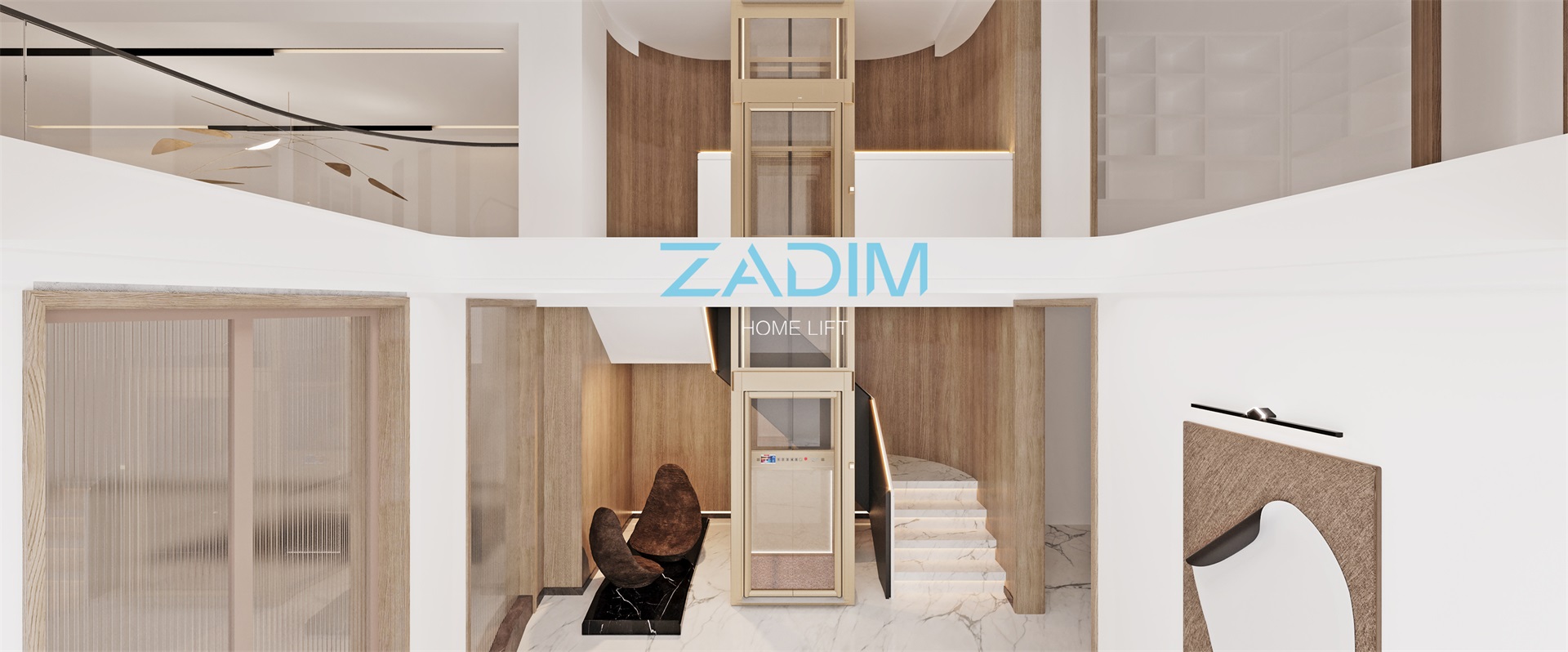

ZADIM Z7000 series screw platform lift is suitable for private villas, duplex buildings and other residences. Adopting Sweden screw drive system, based on the design requirements of home lifts, Z7000 series platform lift have lifs overall machine performance and safety.

This series of products is driven by a safe and reliable screw drive system. The screw nut technology is innovatively researched and developed by Sweden. The door column and hoistway adopts the full column side insertion design to ensure the ultimate safety of the home; Using the reinforced car frame system, the load can still be loaded. Smooth operation; The door shaft adopts the design of the sky-earth shaft and the supporting aluminum alloy integral glass door frame, enjoying the life with science; The Z7000 series condenses cutting-edge technology with ingenuity, and uses technology to carry a comfortable life!

Features and parameters introduction

Features

• Standard is automatic glass door opening

• Various sizes are available, the minimum size is 960mm*890mm

• Self-contained transparent shaft, sightseeing experience from all sides

• Enhanced car frame system, load heavy objects can still run smoothly

• Comes with emergency release device, automatically leveling after power failure

• Equipped with auxiliary light source ambient light, the overall lighting is more elegant

• The hoistway is equipped with a starry sky ceiling, and the lighting energy saving function is added

• Custom small outbound box design, integrated touch outbound display

Technology And Security

• With integrated hoistway, save more space and have no bottom pit, without machine room, no ceiling height restriction, multiple sizes, large space, and high utilization rate.

• Swedish screw technology, the speed is limited to 9m/min to ensure safe operation, simple and efficient, safe and durable.

• Use advanced door machine system, equipped with electromagnetic door lock and other safety devices to maintain passenger safety in all aspects.

• Adopt the patented design of full column side insertion, which improves the overall strength of the door system, and also ensures the aesthetics of the door system and the hoistway frame.

• Use independent drive dual brake system, stable operation and safer.

• Easy installation, 2-story building can be completed in 2-3 days, zadim hibem provides the world end users with a 2-year warranty for the whole ladder, and a 10-year warranty for the limited drive unit screw and nut.

Multiple Sizes For Different Space Requirements

ZADIM Z7000 series has a variety of sizes, providing products with different space requirements to meet the installation needs of different locations and different family members.

ZADIM Z7000

Note: Please refer to the actual measurement for the specific size

Pit & OH Height Requirements

Pit Requirements

Z7000 series installation pit is required to be 50mm, or directly installed on the ground, and only the height of decorative ground is used to replace the excavation pit, which reduces the cost and trouble of excavation pit.

OH Height

Z7000 series can stop at most 6 floors, and the maximum lifting height is 15 meters.

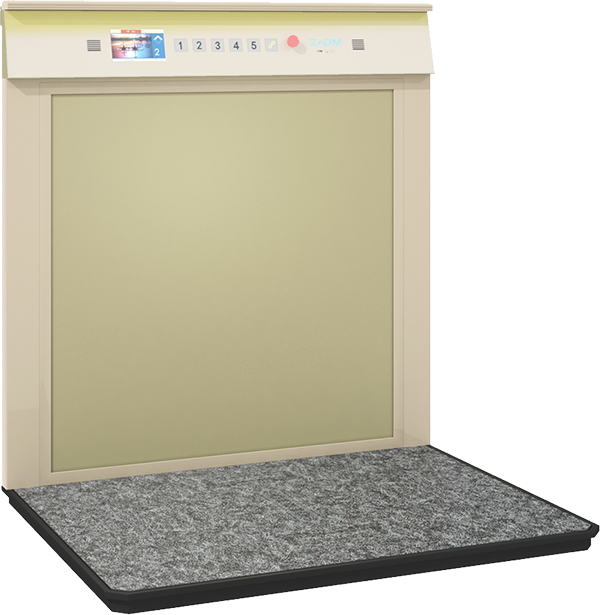

Control platform

The platform is ergonomically designed, comfortable and convenient.

Colorful car wall

You can choose one of the stainless steel car wall and the glass car wall, either stable or flexible. Color customization can be achieved when purchasing, and exclusive colors are advocated to fully meet your individual needs.

Color customization

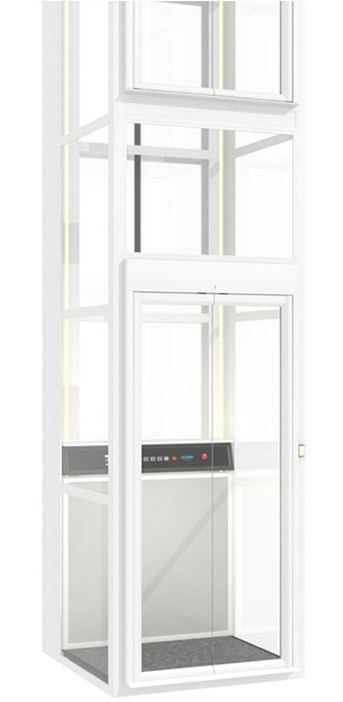

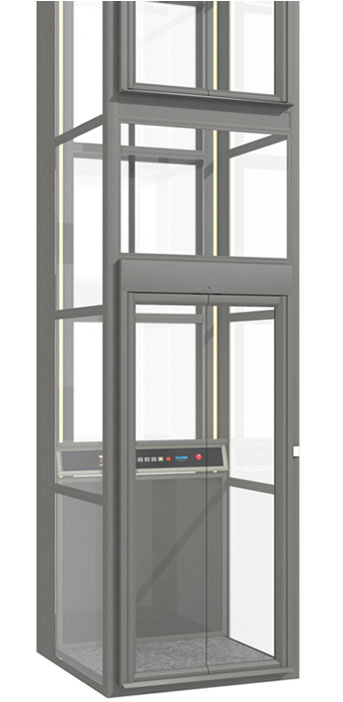

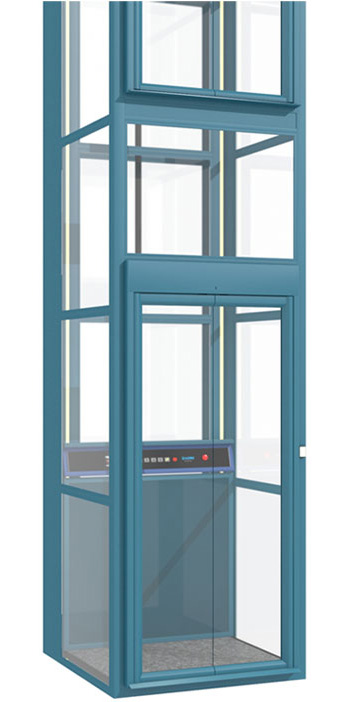

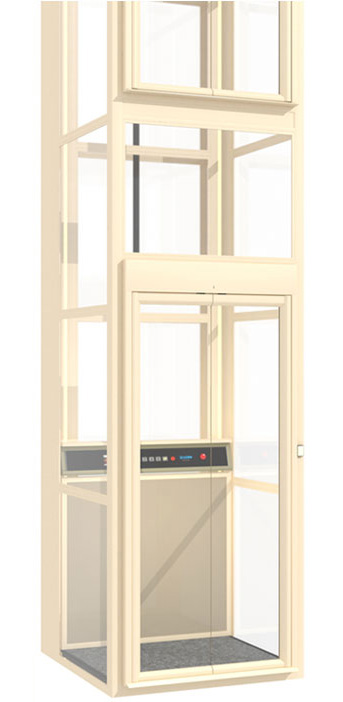

ZADIM Z7000 series can customize the color of aluminum alloy hoistway and door frame, and the four colors of black, white, gray and gold show the style.

Multi-texture floor

A variety of material floors are available for different backgrounds and colors to choose and match, so that ZADIM's design can be integrated with your home decoration style.
